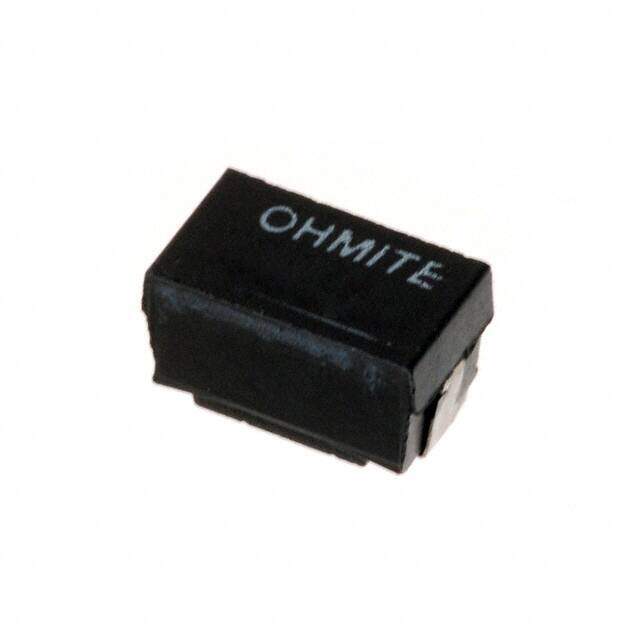

RW2S0CBR200JE
RoHS
RoHS compliant
RoHS compliantPackage 4122 J-Lead
Category Resistors / Chip Resistor - Surface Mount
Description
4122J-Lead FIXED RESISTOR RW 0.407Lx0.226W 10.34mmx5.74mm 2W 200mOhm ±90ppm/C
PDF
/
Buying Options
Total Price: USD $3.3
Unit Price: USD $3.298859
≥1 USD $3.298859
≥10 USD $3.112129
≥100 USD $2.935972
≥500 USD $2.769778
≥1000 USD $2.613002
Inventory: 1123
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Package / Case 4122 J-Lead
Terminal Shape J BEND
Technical
Operating Temperature -55°C~150°C
Packaging Bulk
Published 2011
Series RW
Size / Dimension 0.407Lx0.226W 10.34mmx5.74mm
Tolerance ±5%
JESD-609 Code e3
Feature Current Sense
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
Temperature Coefficient ±90ppm/°C
Resistance 200mOhm
Terminal Finish Matte Tin (Sn)
Composition Wirewound
Voltage - Rated 100V
Power Rating 2W
Voltage - Rated DC 100V
Technology WIRE WOUND
Depth 5.74mm
Construction Rectangular
Resistor Type FIXED RESISTOR
Reach Compliance Code unknown
Rated Power Dissipation (P) 2W
Case Code (Imperial) 4023
Dimensions
Height 5.64mm
Height Seated (Max) 0.227 5.77mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
