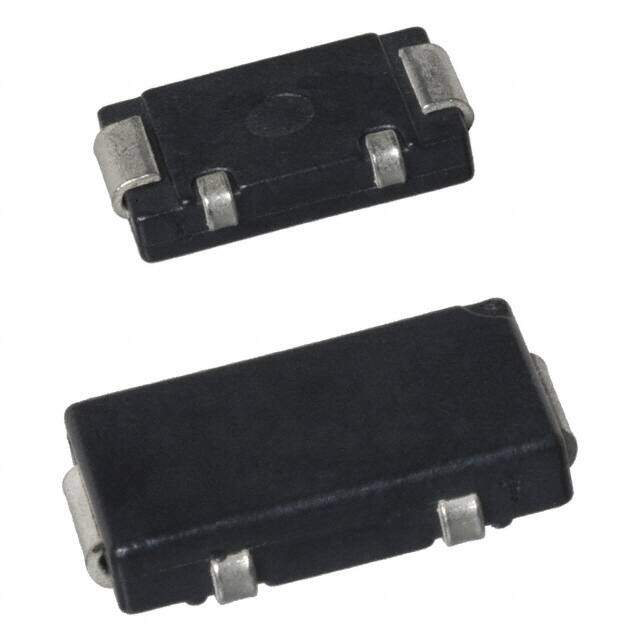

 RW1S0CKR025DE image
Favorite
 RW1S0CKR025DE image
Favorite

RW1S0CKR025DE

Ohmite
RoHS
RoHS RoHS compliant
Package 4324 J-Lead (4 Terminals)
Category Resistors / Chip Resistor - Surface Mount
Description 4324J-Lead (4Terminals) FIXED RESISTOR RW1S0CK 0.425Lx0.244W 10.80mmx6.20mm 1W 25mOhm ±50ppm/C
PDF
/
Buying Options
Total Price: USD $5.4
Unit Price: USD $5.395524
≥1 USD $5.395524
≥10 USD $5.090126
≥100 USD $4.802009
≥500 USD $4.53019
≥1000 USD $4.273766
Inventory: 1463
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.091 2.30mm
Height 2.3114mm

Technical

Rated Power Dissipation (P) 1W
Resistor Type FIXED RESISTOR
Construction Chip
Technology WIRE WOUND
Max Power Dissipation 1W
Packing Method TR
Power Rating 1W
Subcategory Fixed Resistors
Additional Feature FLAMEPROOF, HIGH PRECISION
Voltage - Rated 70mV
Composition Thick Film
Terminal Finish Matte Tin (Sn)
Resistance 25mOhm
Temperature Coefficient ±50ppm/°C
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Current Sense, Flame Proof, Moisture Resistant, Safety
JESD-609 Code e3
Tolerance ±0.5%
Size / Dimension 0.425Lx0.244W 10.80mmx6.20mm
Series RW1S0CK
Published 2014
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Number of Pins 2
Terminal Shape WRAPAROUND
Package / Case 4324 J-Lead (4 Terminals)
Mount Surface Mount

Supply Chain

Factory Lead Time 22 Weeks
