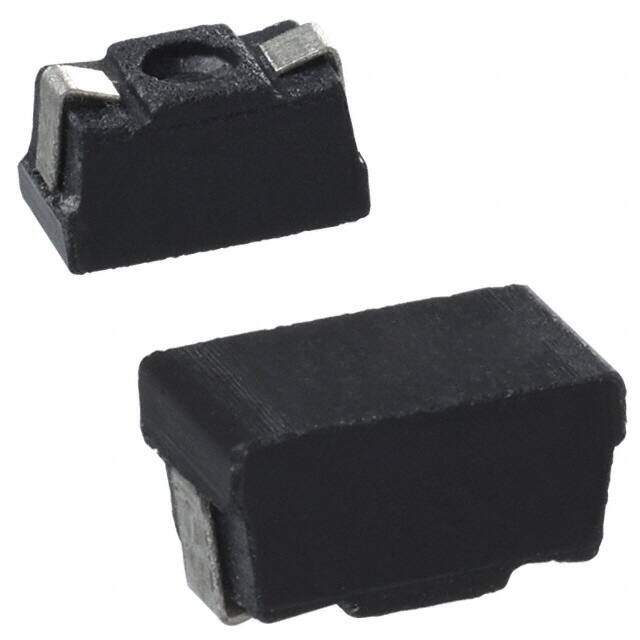

RW1S0BAR027JE image
Favorite
RW1S0BAR027JE image
Favorite

RW1S0BAR027JE

Ohmite
RoHS
RoHS RoHS compliant
Package 2512 J-Lead
Category Resistors / Chip Resistor - Surface Mount
Description 2512J-Lead FIXED RESISTOR RW 0.246Lx0.136W 6.25mmx3.45mm 1W 27mOhm 90ppm/C
PDF
/
Buying Options
Total Price: USD $2.85
Unit Price: USD $2.8512
≥1 USD $2.8512
Inventory: 67
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 26 Weeks

Physical

Mount Surface Mount
Package / Case 2512 J-Lead
Terminal Shape J BEND

Technical

Operating Temperature -55°C~150°C
Packaging Bulk
Published 2015
Series RW
Size / Dimension 0.246Lx0.136W 6.25mmx3.45mm
Tolerance ±5%
JESD-609 Code e3
Feature Current Sense
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient 90 ppm/°C
Resistance 27mOhm
Terminal Finish Matte Tin (Sn)
Composition Wirewound
Voltage - Rated 50V
Power Rating 1W
Voltage - Rated DC 50V
Technology WIRE WOUND
Construction Rectangular
Resistor Type FIXED RESISTOR
Reach Compliance Code unknown
Case Code (Metric) 6234
Rated Power Dissipation (P) 1W
Case Code (Imperial) 2414

Dimensions

Height 3.45mm
Height Seated (Max) 0.141 3.58mm

Compliance

RoHS Status ROHS3 Compliant
Lead Free Lead Free
