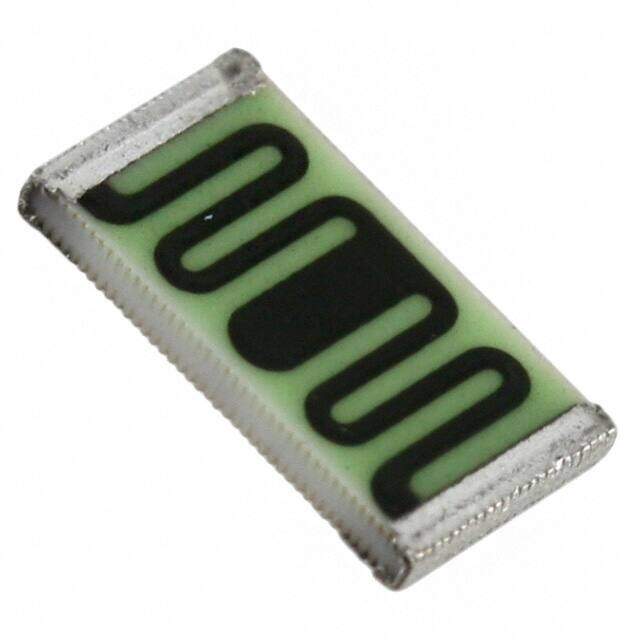

HVC2512T1005JET
RoHS
RoHS compliant
RoHS compliantPackage 2512 (6432 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
2512 (6432Metric) FIXED RESISTOR HVC 0.248Lx0.138W 6.30mmx3.50mm 1W 10MOhm ±100ppm/C
PDF
/
Buying Options
Total Price: USD $4.97
Unit Price: USD $4.972
≥1 USD $4.972
≥10 USD $3.16712
≥100 USD $2.440064
≥500 USD $2.21936
Inventory: 667
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Package / Case 2512 (6432 Metric)
Terminal Shape WRAPAROUND
Technical
Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Published 2012
Series HVC
Size / Dimension 0.248Lx0.138W 6.30mmx3.50mm
Tolerance ±5%
JESD-609 Code e3
Feature High Voltage
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient ±100ppm/°C
Resistance 10MOhm
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Composition Thick Film
Voltage - Rated 2kV
Additional Feature PRECISION
Subcategory Fixed Resistors
Power Rating 1W
Voltage - Rated DC 2kV
Packing Method TR
Max Power Dissipation 1W
Depth 3.5mm
Construction Chip
Resistor Type FIXED RESISTOR
Case Code (Metric) 6432
Rated Power Dissipation (P) 1W
Case Code (Imperial) 2512
Dimensions
Height 762μm
Height Seated (Max) 0.022 0.55mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
