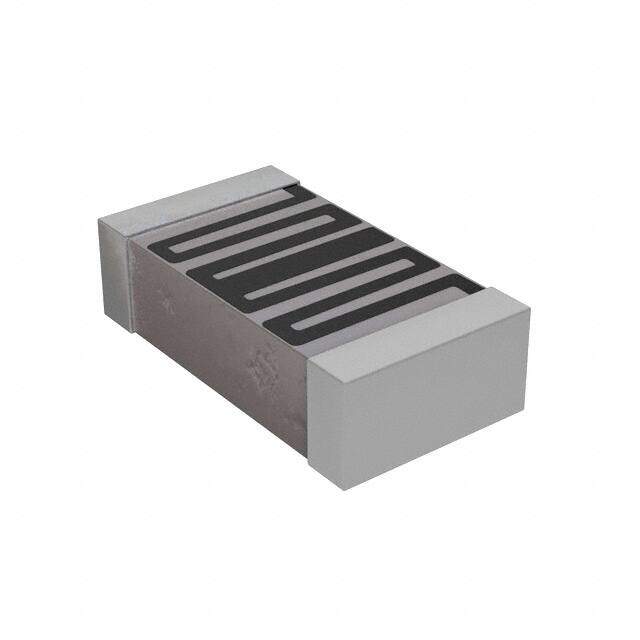

HVC0603N5007KET
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
0603 (1608Metric) FIXED RESISTOR HVC 0.059Lx0.031W 1.50mmx0.80mm 0.1W 1/10W 5GOhm ±1000ppm/C
PDF
/
Buying Options
Total Price: USD $7.78
Unit Price: USD $7.7792
≥1 USD $7.7792
≥10 USD $5.16736
≥100 USD $4.12896
≥500 USD $3.77432
Inventory: 171
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Package / Case 0603 (1608 Metric)
Technical
Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Published 2014
Series HVC
Size / Dimension 0.059Lx0.031W 1.50mmx0.80mm
Tolerance ±10%
JESD-609 Code e3
Feature High Voltage
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient ±1000ppm/°C
Resistance 5GOhm
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Composition Thick Film
Power (Watts) 0.1W 1/10W
Voltage - Rated 75V
Power Rating 100mW
Voltage - Rated DC 75V
Max Power Dissipation 100mW
Resistor Type FIXED RESISTOR
Case Code (Metric) 1608
Case Code (Imperial) 0603
Dimensions
Height 558.8μm
Height Seated (Max) 0.022 0.55mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
