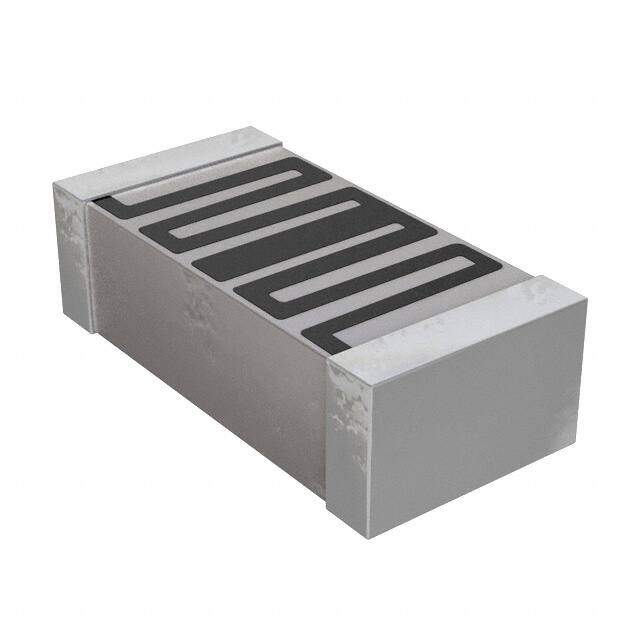

HVC0402N5007KET
RoHS
RoHS compliant
RoHS compliantPackage 0402 (1005 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
0402 (1005Metric) FIXED RESISTOR HVC 0.041Lx0.020W 1.04mmx0.50mm 0.05W 1/20W 5GOhm ±1000ppm/C
PDF
/
Buying Options
Total Price: USD $5.35
Unit Price: USD $5.3504
≥1 USD $5.3504
Inventory: 1018
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Package / Case 0402 (1005 Metric)
Technical
Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Published 2014
Series HVC
Size / Dimension 0.041Lx0.020W 1.04mmx0.50mm
Tolerance ±10%
JESD-609 Code e3
Feature High Voltage
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient ±1000ppm/°C
Resistance 5GOhm
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Composition Thick Film
Power (Watts) 0.05W 1/20W
Voltage - Rated 30V
Power Rating 50mW
Voltage - Rated DC 30V
Max Power Dissipation 50mW
Resistor Type FIXED RESISTOR
Case Code (Metric) 1005
Case Code (Imperial) 0402
Dimensions
Height 355.6μm
Height Seated (Max) 0.014 0.35mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
