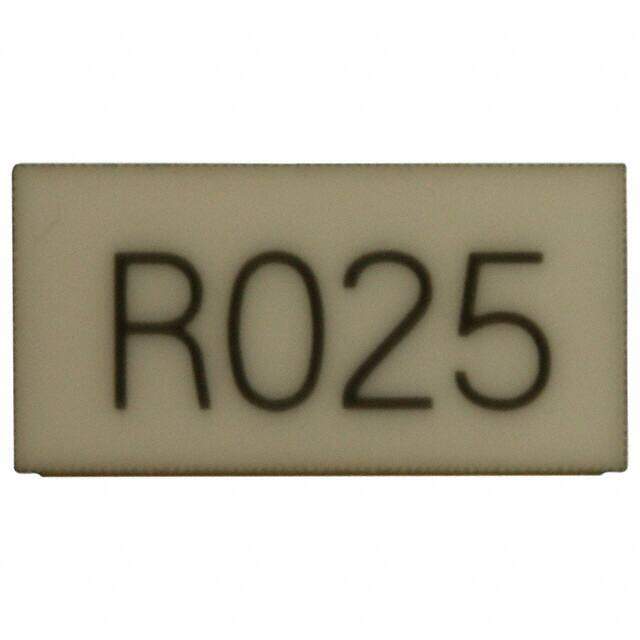

FCSL76R025FER
RoHS
RoHS compliant
RoHS compliantPackage Wide 3015 (7638 Metric), 1530
Category Resistors / Chip Resistor - Surface Mount
Description
Wide 3015 (7638Metric) 1530 FIXED RESISTOR FCSL 0.150Lx0.299W 3.80mmx7.60mm 3W 25mOhm ±50ppm/C
PDF
/
Buying Options
Total Price: USD $1.2
Unit Price: USD $1.1968
≥1 USD $1.1968
≥10 USD $1.00408
≥100 USD $0.972928
≥500 USD $0.887568
≥1000 USD $0.727232
≥3000 USD $0.648666
Inventory: 1237
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Package / Case Wide 3015 (7638 Metric), 1530
Terminal Shape ONE SURFACE
Technical
Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Published 2001
Series FCSL
Size / Dimension 0.150Lx0.299W 3.80mmx7.60mm
Tolerance ±1%
JESD-609 Code e3
Feature Current Sense, Moisture Resistant
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
Temperature Coefficient ±50ppm/°C
Resistance 25mOhm
Terminal Finish TIN
Composition Metal Foil
Power Rating 3W
Packing Method TR, PAPER/EMBOSSED PLASTIC, 7 INCH
Max Power Dissipation 3W
Depth 3.8mm
Construction Rectangular
Resistor Type FIXED RESISTOR
Case Code (Metric) 7638
Rated Power Dissipation (P) 3W
Case Code (Imperial) 3015
Dimensions
Height 711.2μm
Height Seated (Max) 0.028 0.70mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant

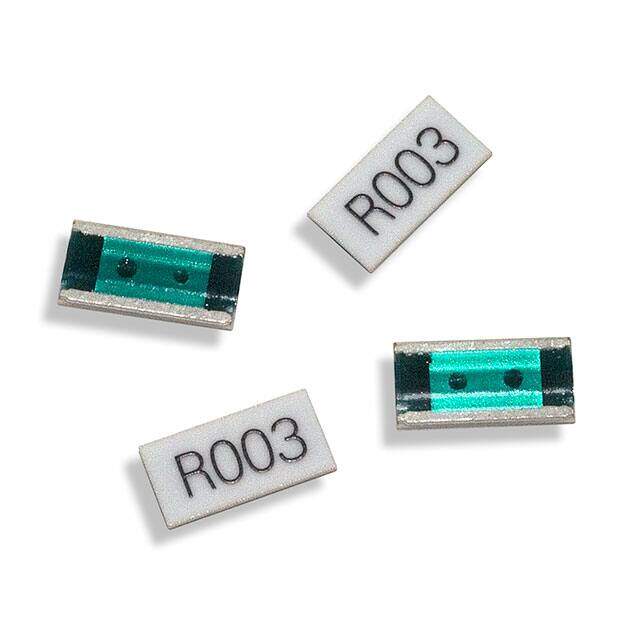

Alternative Model
