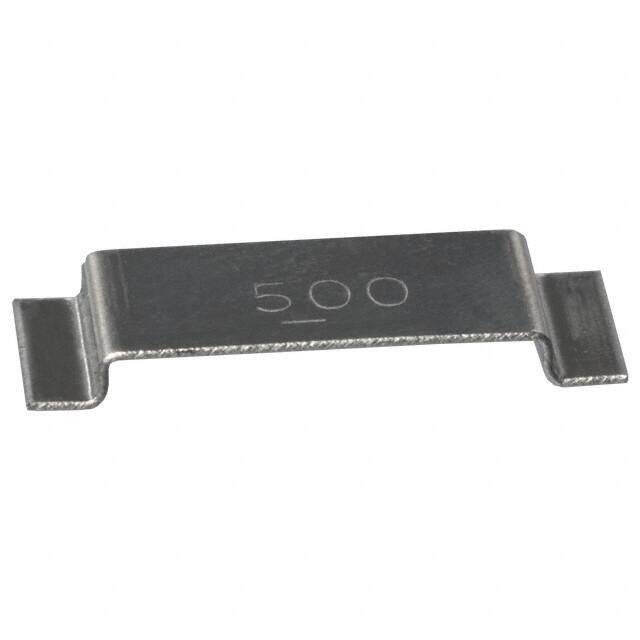

605SJR00500
RoHS
/
Package Strip, L Bend
Category Resistors / Chip Resistor - Surface Mount
Description
Strip L Bend FIXED RESISTOR 60S 0.551Lx0.205W 14.00mmx5.20mm 0.5W 1/2W 5mOhm ±100ppm/C
PDF
/
Inventory: 6220
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient ±100ppm/°C
Resistance 5mOhm
Terminal Finish Copper/Nickel (Cu/Ni)
Composition Metal Element
Power (Watts) 0.5W 1/2W
Voltage - Rated 30mV
Subcategory Fixed Resistors
Power Rating 500mW
Packing Method TR, EMBOSSED, 10 INCH
Technology METAL STRIP
Construction Flameproof
Resistor Type FIXED RESISTOR
Rated Power Dissipation (P) 0.5W
Case Code (Imperial) 4012
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Current Sense, Flame Proof, Moisture Resistant, Safety
Tolerance ±5%
Size / Dimension 0.551Lx0.205W 14.00mmx5.20mm
Series 60S
Published 2005
Packaging Bulk
Operating Temperature -40°C~155°C
Dimensions
Height 2mm
Height Seated (Max) 0.079 2.00mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
Physical
Terminal Shape ONE SURFACE
Package / Case Strip, L Bend
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
