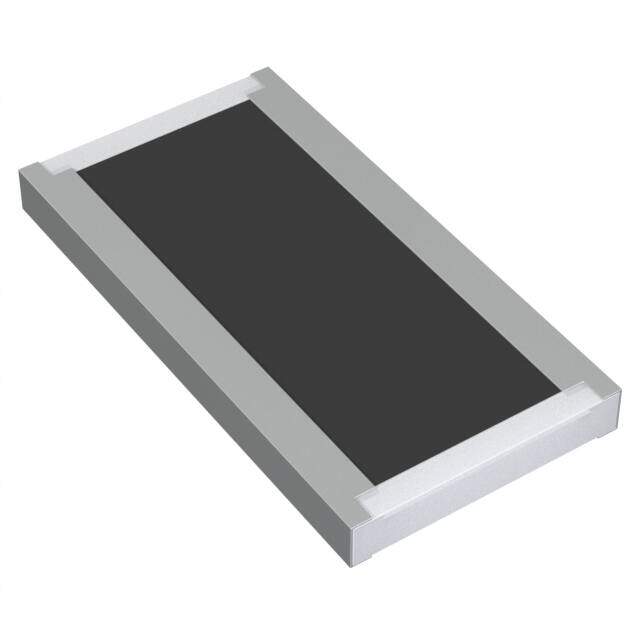

WK73S3ATTER20J image
Favorite
WK73S3ATTER20J image
Favorite
RoHS
RoHS RoHS compliant
Package Wide 2512 (6432 Metric), 1225
Category Resistors / Chip Resistor - Surface Mount
Description Wide 2512 (6432Metric) 1225 FIXED RESISTOR WK73S 0.122Lx0.248W 3.10mmx6.30mm 1.5W 200mOhm ±200ppm/C
PDF
/
Inventory: 2605
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Package / Case Wide 2512 (6432 Metric), 1225
Surface Mount YES
Terminal Shape WRAPAROUND
Mounting Feature SURFACE MOUNT

Technical

Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Series WK73S
Size / Dimension 0.122Lx0.248W 3.10mmx6.30mm
Tolerance ±5%
JESD-609 Code e3
Feature Automotive AEC-Q200, Moisture Resistant
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient ±200ppm/°C
Resistance 200mOhm
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Composition Thick Film
Voltage - Rated 200V
Power Rating 1.5W
Voltage - Rated DC 200V
Packing Method TR, EMBOSSED PLASTIC, 7 INCH
Construction Rectangular
Resistor Type FIXED RESISTOR
Case Code (Metric) 3264
Case Code (Imperial) 1225

Dimensions

Height 600μm
Height Seated (Max) 0.028 0.70mm

Compliance

RoHS Status ROHS3 Compliant
Ratings AEC-Q200
