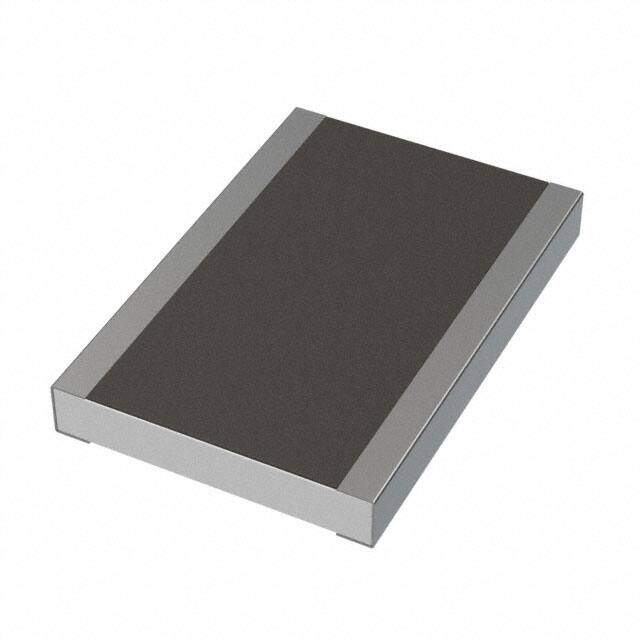

WK73S2JTTER100F
RoHS
RoHS compliant
RoHS compliantPackage Wide 1812 (4532 Metric), 1218
Category Resistors / Chip Resistor - Surface Mount
Description
WK73S FIXED RESISTOR Wide 1812 (4532Metric) 1218 Chip Resistor ±1% ±200ppm/C 100mOhm 1W
PDF
/
Buying Options
Total Price: USD $0.61
Unit Price: USD $0.6072
≥1 USD $0.6072
≥10 USD $0.34408
≥100 USD $0.247456
≥500 USD $0.217008
≥1000 USD $0.166338
≥3000 USD $0.150295
Inventory: 264
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.028 0.70mm
Height 600μm
Technical
Case Code (Imperial) 1218
Rated Power Dissipation (P) 1W
Case Code (Metric) 3246
Resistor Type FIXED RESISTOR
Construction Rectangular
Packing Method TR, EMBOSSED PLASTIC, 7 INCH
Voltage - Rated DC 200V
Power Rating 1W
Voltage - Rated 200V
Composition Thick Film
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Resistance 100mOhm
Temperature Coefficient ±200ppm/°C
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Automotive AEC-Q200, Moisture Resistant
JESD-609 Code e3
Tolerance ±1%
Size / Dimension 0.122Lx0.181W 3.10mmx4.60mm
Series WK73S
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -55°C~155°C
Physical
Weight 29.511854mg
Mounting Feature SURFACE MOUNT
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case Wide 1812 (4532 Metric), 1218
Supply Chain
Factory Lead Time 8 Weeks
