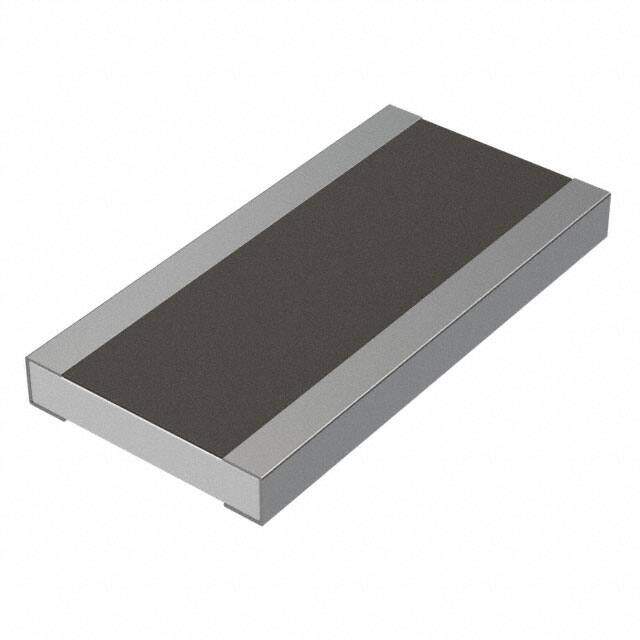

WK73R2HTTE151J
RoHS
RoHS compliant
RoHS compliantPackage Wide 2010 (5025 Metric), 1020
Category Resistors / Chip Resistor - Surface Mount
Description
Wide 2010 (5025Metric) 1020 FIXED RESISTOR WK73R 0.098Lx0.197W 2.50mmx5.00mm 1W 150Ohm ±100ppm/C
PDF
/
Inventory: 3423
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.028 0.70mm
Height 600μm
Technical
Case Code (Imperial) 1020
Rated Power Dissipation (P) 1W
Case Code (Metric) 2550
Resistor Type FIXED RESISTOR
Construction Rectangular
Packing Method TR, Embossed Plastic, 7 Inch
Voltage - Rated DC 200V
Power Rating 1W
Voltage - Rated 200V
Composition Thick Film
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Resistance 150Ohm
Temperature Coefficient ±100ppm/°C
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Automotive AEC-Q200, Moisture Resistant
JESD-609 Code e3
Tolerance ±5%
Size / Dimension 0.098Lx0.197W 2.50mmx5.00mm
Series WK73R
Packaging Tape & Reel (TR)
Operating Temperature -55°C~155°C
Physical
Mounting Feature SURFACE MOUNT
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case Wide 2010 (5025 Metric), 1020
Supply Chain
Factory Lead Time 8 Weeks
