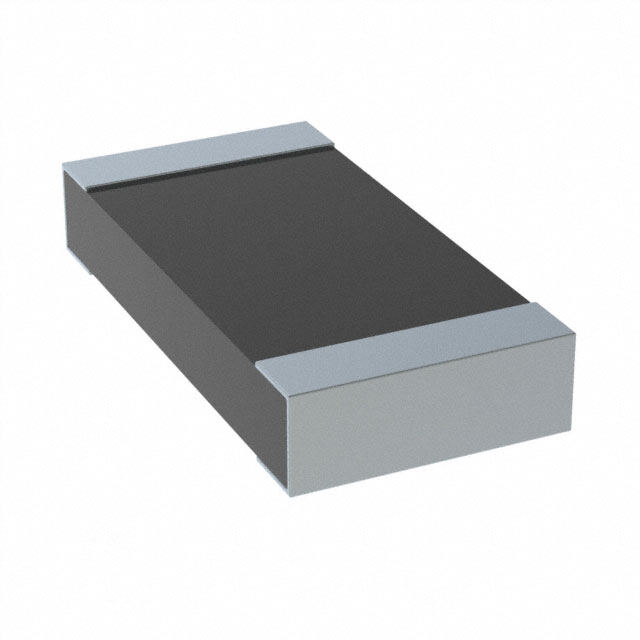

UR73D3ATTER100F
RoHS
RoHS compliant
RoHS compliantPackage 2512 (6432 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
2512 (6432Metric) FIXED RESISTOR UR73 0.248Lx0.122W 6.30mmx3.10mm 1W 100mOhm ±100ppm/C
PDF
/
Buying Options
Total Price: USD $0.71
Unit Price: USD $0.7128
≥1 USD $0.7128
≥10 USD $0.58432
≥100 USD $0.541376
≥500 USD $0.49456
≥1000 USD $0.406912
≥3000 USD $0.373296
Inventory: 1889
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.043 1.10mm
Height 600μm
Technical
Case Code (Imperial) 2512
Rated Power Dissipation (P) 1W
Case Code (Metric) 6432
Military Standard Not
Resistor Type FIXED RESISTOR
Construction Rectangular
Depth 3.1mm
Packing Method TR, EMBOSSED PLASTIC, 7 INCH
Power Rating 1W
Additional Feature HIGH PRECISION
Composition Thick Film
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Resistance 100mOhm
Temperature Coefficient ±100ppm/°C
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Current Sense
JESD-609 Code e3
Tolerance ±1%
Size / Dimension 0.248Lx0.122W 6.30mmx3.10mm
Series UR73
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Weight 40.511469mg
Mounting Feature SURFACE MOUNT
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case 2512 (6432 Metric)
Supply Chain
Factory Lead Time 8 Weeks
