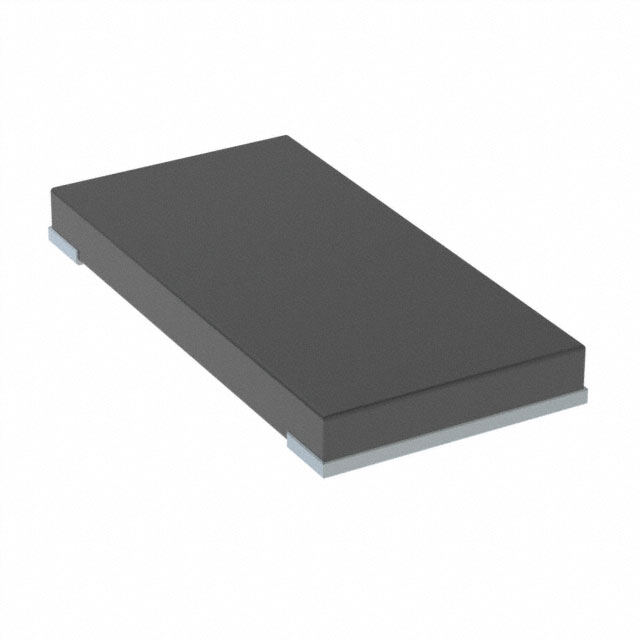

TLRH3AWTTE10L0F
RoHS
RoHS compliant
RoHS compliantPackage 2512 (6432 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
2512 (6432Metric) FIXED RESISTOR TLRH 0.248Lx0.126W 6.30mmx3.20mm 2W 10mOhm ±75ppm/C
PDF
/
Inventory: 6014
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Package / Case 2512 (6432 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Mounting Feature SURFACE MOUNT
Technical
Operating Temperature -65°C~170°C
Packaging Tape & Reel (TR)
Series TLRH
Size / Dimension 0.248Lx0.126W 6.30mmx3.20mm
Tolerance ±1%
JESD-609 Code e3
Feature Automotive AEC-Q200, Current Sense
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient ±75ppm/°C
Resistance 10mOhm
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Composition Metal Element
Power Rating 2W
Packing Method TR, PUNCHED PLASTIC, 7 INCH
Technology METAL STRIP
Construction Rectangular
Resistor Type FIXED RESISTOR
Case Code (Metric) 6432
Rated Power Dissipation (P) 2W
Case Code (Imperial) 2512
Dimensions
Height 500μm
Height Seated (Max) 0.028 0.70mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
