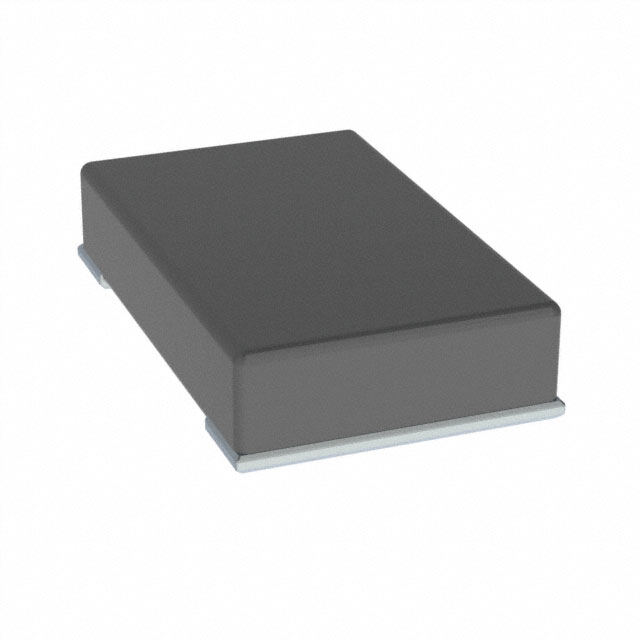

TLRH2ATTD68L0F
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
0805 (2012Metric) FIXED RESISTOR TLRH 0.079Lx0.049W 2.00mmx1.25mm 0.25W 1/4W 68mOhm ±75ppm/C
PDF
/
Buying Options
Total Price: USD $0.67
Unit Price: USD $0.6688
≥1 USD $0.6688
≥10 USD $0.53152
≥100 USD $0.480128
≥500 USD $0.431904
≥1000 USD $0.356752
≥3000 USD $0.335949
Inventory: 1386
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.018 0.45mm
Height 250μm
Technical
Case Code (Imperial) 0805
Case Code (Metric) 2012
Resistor Type FIXED RESISTOR
Construction Rectangular
Technology METAL STRIP
Packing Method TR, PUNCHED PAPER, 7 INCH
Power Rating 250mW
Power (Watts) 0.25W 1/4W
Composition Metal Element
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Resistance 68mOhm
Temperature Coefficient ±75ppm/°C
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Automotive AEC-Q200, Current Sense
JESD-609 Code e3
Tolerance ±1%
Size / Dimension 0.079Lx0.049W 2.00mmx1.25mm
Series TLRH
Packaging Tape & Reel (TR)
Operating Temperature -65°C~155°C
Physical
Mounting Feature SURFACE MOUNT
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case 0805 (2012 Metric)
Supply Chain
Factory Lead Time 10 Weeks
