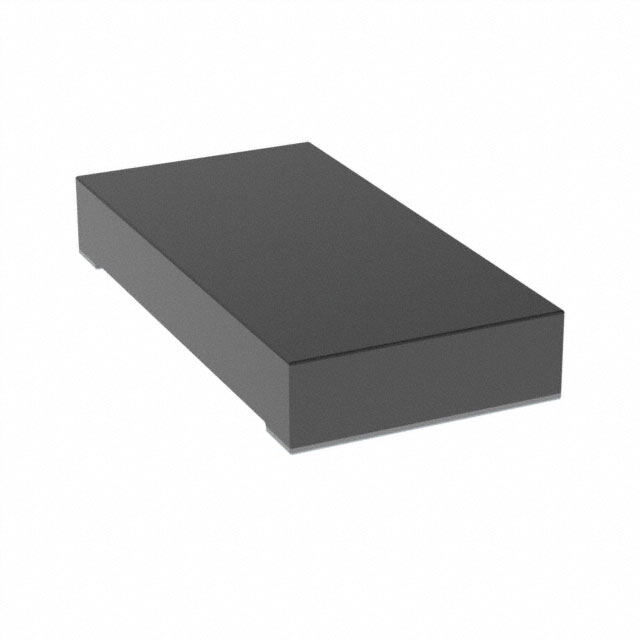

TLR2HDTE8L00F75
RoHS
RoHS compliant
RoHS compliantPackage 2010 (5025 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
2010 (5025Metric) FIXED RESISTOR TLR 0.200Lx0.100W 5.08mmx2.54mm 1W 8mOhm ±75ppm/C
PDF
/
Buying Options
Total Price: USD $0.68
Unit Price: USD $0.6776
≥1 USD $0.6776
≥10 USD $0.55616
≥100 USD $0.515328
≥500 USD $0.470976
≥1000 USD $0.387552
≥3000 USD $0.35552
Inventory: 1484
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.032 0.81mm
Technical
Rated Power Dissipation (P) 1W
Military Standard Not
Resistor Type FIXED RESISTOR
Construction Rectangular
Depth 2.5mm
Technology METAL STRIP
Packing Method TR, EMBOSSED PLASTIC, 7 INCH
Power Rating 1W
Composition Metal Element
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Resistance 8mOhm
Temperature Coefficient ±75ppm/°C
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Automotive AEC-Q200, Current Sense
JESD-609 Code e1
Tolerance ±1%
Size / Dimension 0.200Lx0.100W 5.08mmx2.54mm
Series TLR
Packaging Tape & Reel (TR)
Operating Temperature -65°C~170°C
Physical
Mounting Feature SURFACE MOUNT
Terminal Shape ONE SURFACE
Surface Mount YES
Package / Case 2010 (5025 Metric)
Supply Chain
Factory Lead Time 11 Weeks
