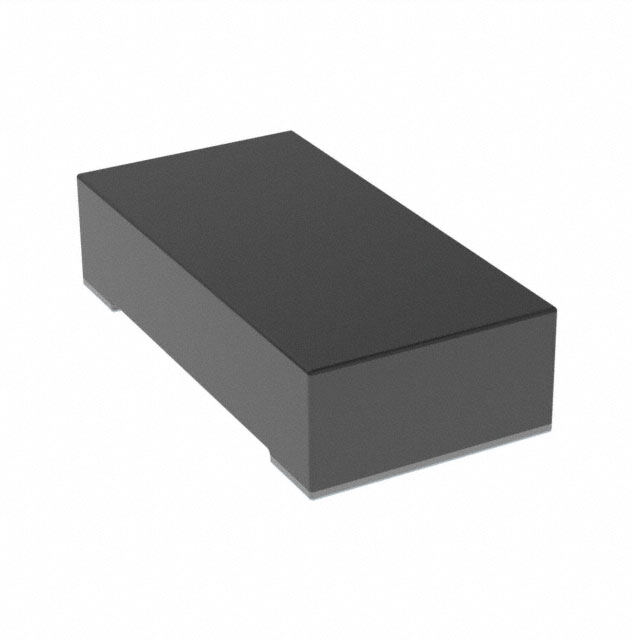

TLR2BDTD20L0F75 image
Favorite
TLR2BDTD20L0F75 image
Favorite
RoHS
RoHS RoHS compliant
Package 1206 (3216 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description 1206 (3216Metric) FIXED RESISTOR TLR 0.126Lx0.063W 3.20mmx1.60mm 0.5W 1/2W 20mOhm ±75ppm/C
PDF
/
Buying Options
Total Price: USD $0.64
Unit Price: USD $0.6424
≥1 USD $0.6424
≥10 USD $0.52888
≥100 USD $0.489632
≥500 USD $0.447568
≥1000 USD $0.368104
≥3000 USD $0.337744
Inventory: 1799
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 11 Weeks

Physical

Package / Case 1206 (3216 Metric)
Surface Mount YES
Terminal Shape ONE SURFACE
Mounting Feature SURFACE MOUNT

Technical

Operating Temperature -65°C~170°C
Packaging Tape & Reel (TR)
Published 2009
Series TLR
Size / Dimension 0.126Lx0.063W 3.20mmx1.60mm
Tolerance ±1%
JESD-609 Code e1
Feature Automotive AEC-Q200, Current Sense
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Temperature Coefficient ±75ppm/°C
Resistance 20mOhm
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Composition Metal Element
Power (Watts) 0.5W 1/2W
Power Rating 500mW
Packing Method TR, PUNCHED PAPER, 7 INCH
Technology METAL STRIP
Construction Rectangular
Resistor Type FIXED RESISTOR
Rated Power Dissipation (P) 0.5W

Dimensions

Height Seated (Max) 0.032 0.81mm

Compliance

RoHS Status ROHS3 Compliant
Ratings AEC-Q200
