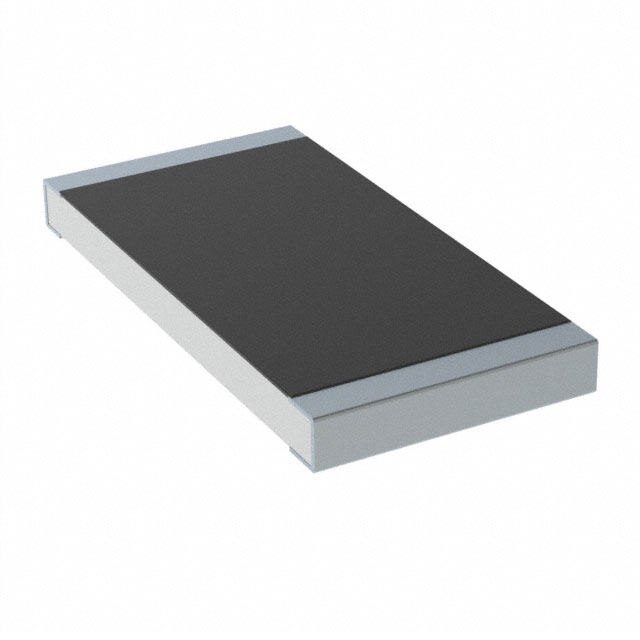

SR733ATTER150F
RoHS
RoHS compliant
RoHS compliantPackage 2512 (6432 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
SR73 FIXED RESISTOR 2512 (6432Metric) Chip Resistor ±1% ±100ppm/C 150mOhm 1W
PDF
/
Buying Options
Total Price: USD $0.47
Unit Price: USD $0.4664
≥1 USD $0.4664
≥10 USD $0.38544
≥100 USD $0.356928
≥500 USD $0.326128
≥1000 USD $0.268312
≥3000 USD $0.246189
Inventory: 1634
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.024 0.60mm
Height 600μm
Technical
Case Code (Imperial) 2512
Rated Power Dissipation (P) 1W
Case Code (Metric) 6332
Resistor Type FIXED RESISTOR
Construction Rectangular
Packing Method TR, EMBOSSED PLASTIC, 7 INCH
Power Rating 1W
Voltage - Rated 3.16V
Composition Thick Film
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Resistance 150mOhm
Temperature Coefficient ±100ppm/°C
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Automotive AEC-Q200, Current Sense
JESD-609 Code e3
Tolerance ±1%
Size / Dimension 0.248Lx0.122W 6.30mmx3.10mm
Series SR73
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C
Physical
Mounting Feature SURFACE MOUNT
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case 2512 (6432 Metric)
Supply Chain
Factory Lead Time 6 Weeks
