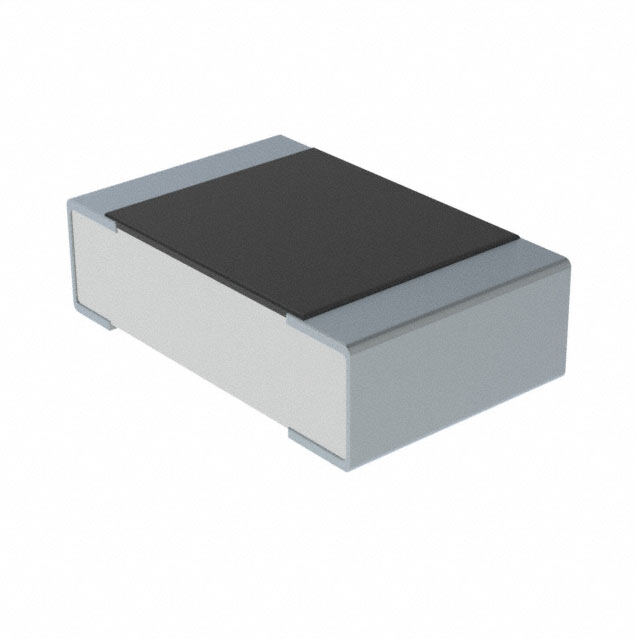

SR732ATTDR680F
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
0805 (2012Metric) FIXED RESISTOR SR73 0.079Lx0.049W 2.00mmx1.25mm 0.333W 1/3W 680mOhm ±100ppm/C
PDF
/
Buying Options
Total Price: USD $0.44
Unit Price: USD $0.44
≥1 USD $0.44
≥10 USD $0.32032
≥100 USD $0.256608
≥500 USD $0.190608
≥1000 USD $0.134464
≥3000 USD $0.11975
Inventory: 1487
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Package / Case 0805 (2012 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Mounting Feature SURFACE MOUNT
Technical
Operating Temperature -55°C~150°C
Packaging Tape & Reel (TR)
Series SR73
Size / Dimension 0.079Lx0.049W 2.00mmx1.25mm
Tolerance ±1%
JESD-609 Code e3
Feature Automotive AEC-Q200, Current Sense
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Temperature Coefficient ±100ppm/°C
Resistance 680mOhm
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Composition Thick Film
Power (Watts) 0.333W 1/3W
Voltage - Rated 1.58V
Power Rating 250mW
Voltage - Rated DC 1.58V
Packing Method TR, PUNCHED PAPER, 7 INCH
Construction Rectangular
Resistor Type FIXED RESISTOR
Case Code (Metric) 2012
Rated Power Dissipation (P) 0.33W
Case Code (Imperial) 0805
Dimensions
Height Seated (Max) 0.024 0.60mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200

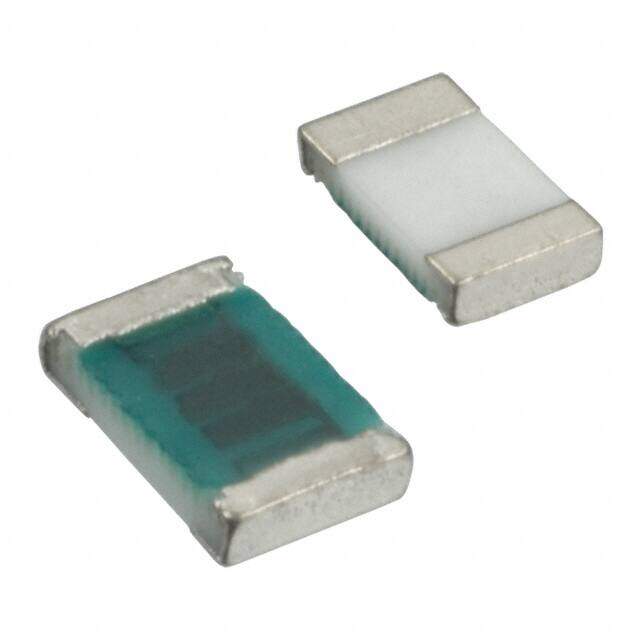

Alternative Model
