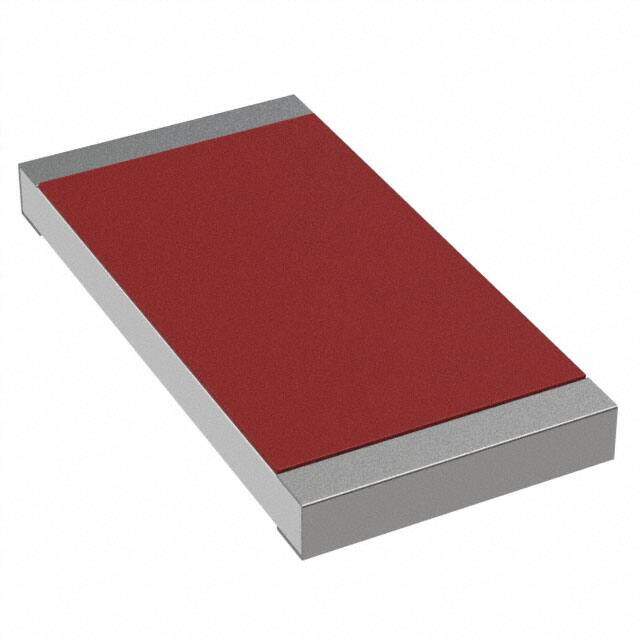

SG73W3ATTE154M image
Favorite
SG73W3ATTE154M image
Favorite
RoHS
RoHS RoHS compliant
Package 2512 (6432 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description 2512 (6432Metric) FIXED RESISTOR SG73 0.248Lx0.122W 6.30mmx3.10mm 1W 150kOhm ±200ppm/C
PDF
/
Inventory: 8703
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Package / Case 2512 (6432 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Mounting Feature SURFACE MOUNT

Technical

Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Series SG73
Size / Dimension 0.248Lx0.122W 6.30mmx3.10mm
Tolerance ±20%
JESD-609 Code e3
Feature Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient ±200ppm/°C
Resistance 150kOhm
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Composition Thick Film
Voltage - Rated 200V
Power Rating 1W
Voltage - Rated DC 200V
Packing Method TR, Embossed Plastic, 7 Inch
Construction Rectangular
Resistor Type FIXED RESISTOR
Case Code (Metric) 6432
Rated Power Dissipation (P) 1W
Case Code (Imperial) 2512

Dimensions

Height 600μm
Height Seated (Max) 0.028 0.70mm

Compliance

RoHS Status ROHS3 Compliant
Ratings AEC-Q200
