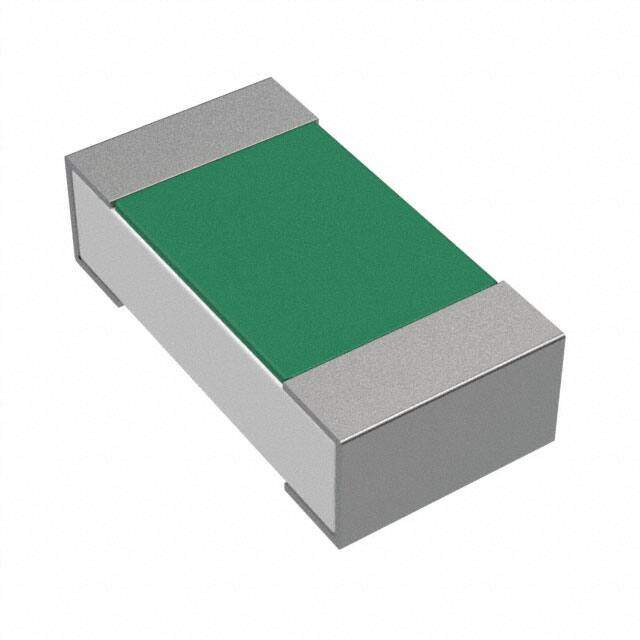

SG73S1JTTD623G
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
0603 (1608Metric) FIXED RESISTOR SG73S 0.063Lx0.031W 1.60mmx0.80mm 0.2W 1/5W 62kOhm ±100ppm/C
PDF
/
Inventory: 6103
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Package / Case 0603 (1608 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Mounting Feature SURFACE MOUNT
Technical
Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Series SG73S
Size / Dimension 0.063Lx0.031W 1.60mmx0.80mm
Tolerance ±2%
JESD-609 Code e3
Feature Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient ±100ppm/°C
Resistance 62kOhm
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Composition Thick Film
Power (Watts) 0.2W 1/5W
Voltage - Rated 50V
Power Rating 200mW
Voltage - Rated DC 50V
Packing Method TR, PUNCHED PAPER, 7 INCH
Construction Rectangular
Resistor Type FIXED RESISTOR
Case Code (Metric) 1608
Case Code (Imperial) 0603
Dimensions
Height 450μm
Height Seated (Max) 0.022 0.55mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
