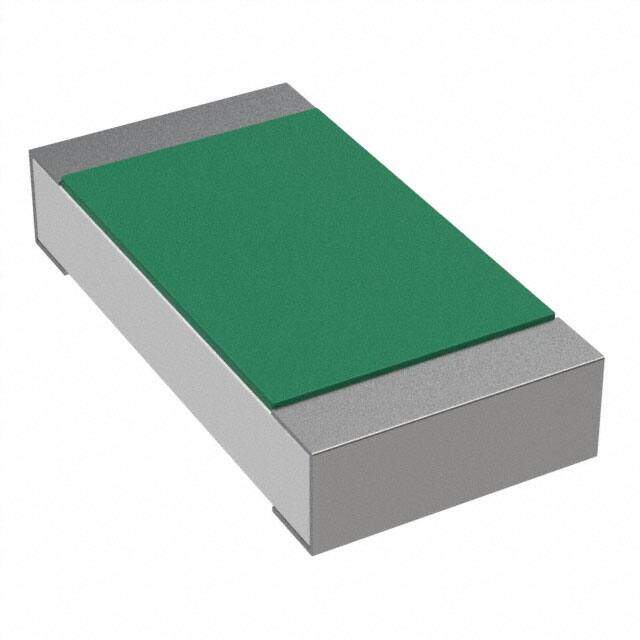

SG73P2BTTD104J
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
1206 (3216Metric) FIXED RESISTOR SG73P 0.126Lx0.063W 3.20mmx1.60mm 0.333W 1/3W 100kOhm ±100ppm/C
PDF
/
Inventory: 7011
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Package / Case 1206 (3216 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Mounting Feature SURFACE MOUNT
Technical
Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Series SG73P
Size / Dimension 0.126Lx0.063W 3.20mmx1.60mm
Tolerance ±5%
JESD-609 Code e3
Feature Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
Temperature Coefficient ±100ppm/°C
Resistance 100kOhm
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Composition Thick Film
Power (Watts) 0.333W 1/3W
Voltage - Rated 200V
Power Rating 330mW
Voltage - Rated DC 200V
Packing Method TR, Punched Paper, 7 Inch
Construction Rectangular
Resistor Type FIXED RESISTOR
Case Code (Metric) 3216
Rated Power Dissipation (P) 0.75W
Case Code (Imperial) 1206
Dimensions
Height 600μm
Height Seated (Max) 0.028 0.70mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
