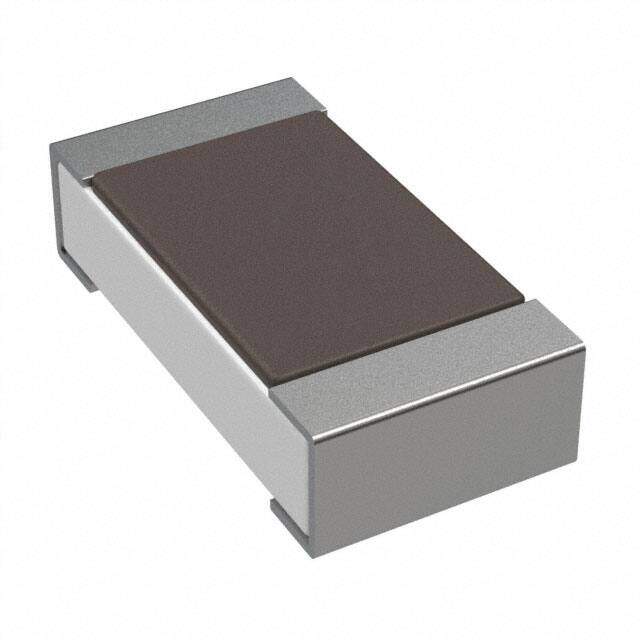

SG73P1ETTP2002D
RoHS
RoHS compliant
RoHS compliantPackage 0402 (1005 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
0402 (1005Metric) FIXED RESISTOR SG73P 0.039Lx0.020W 1.00mmx0.50mm 0.125W 1/8W 20kOhm ±200ppm/C
PDF
/
Inventory: 3651
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.016 0.40mm
Height 350μm
Technical
Case Code (Imperial) 0402
Case Code (Metric) 1005
Resistor Type FIXED RESISTOR
Construction Rectangular
Packing Method TR, Punched Paper, 7 Inch
Voltage - Rated DC 50V
Power Rating 125mW
Voltage - Rated 200V
Power (Watts) 0.125W 1/8W
Composition Thick Film
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Resistance 20kOhm
Temperature Coefficient ±200ppm/°C
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding
JESD-609 Code e3
Tolerance ±0.5%
Size / Dimension 0.039Lx0.020W 1.00mmx0.50mm
Series SG73P
Packaging Tape & Reel (TR)
Operating Temperature -55°C~155°C
Physical
Mounting Feature SURFACE MOUNT
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case 0402 (1005 Metric)
Supply Chain
Factory Lead Time 10 Weeks
