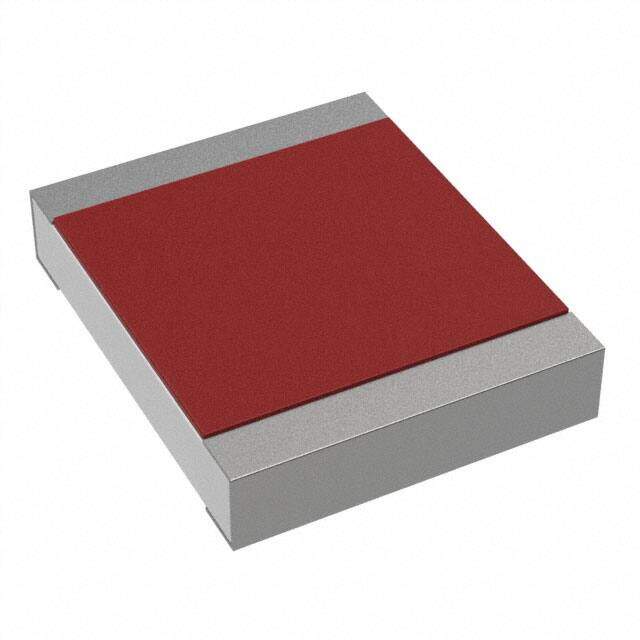

SG732HTTE271K image
Favorite
SG732HTTE271K image
Favorite
RoHS
RoHS RoHS compliant
Package 2010 (5025 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description 2010 (5025Metric) FIXED RESISTOR SG73 0.197Lx0.098W 5.00mmx2.50mm 0.75W 3/4W 270Ohm ±200ppm/C
PDF
/
Inventory: 5088
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Ratings AEC-Q200
RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.028 0.70mm

Technical

Case Code (Imperial) 2010
Rated Power Dissipation (P) 0.75W
Case Code (Metric) 5025
Resistor Type FIXED RESISTOR
Construction Rectangular
Packing Method TR, Embossed Plastic, 7 Inch
Voltage - Rated DC 200V
Power Rating 750mW
Voltage - Rated 200V
Power (Watts) 0.75W 3/4W
Composition Thick Film
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Resistance 270Ohm
Temperature Coefficient ±200ppm/°C
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding
JESD-609 Code e3
Tolerance ±10%
Size / Dimension 0.197Lx0.098W 5.00mmx2.50mm
Series SG73
Packaging Tape & Reel (TR)
Operating Temperature -55°C~155°C

Physical

Mounting Feature SURFACE MOUNT
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case 2010 (5025 Metric)

Supply Chain

Factory Lead Time 7 Weeks
