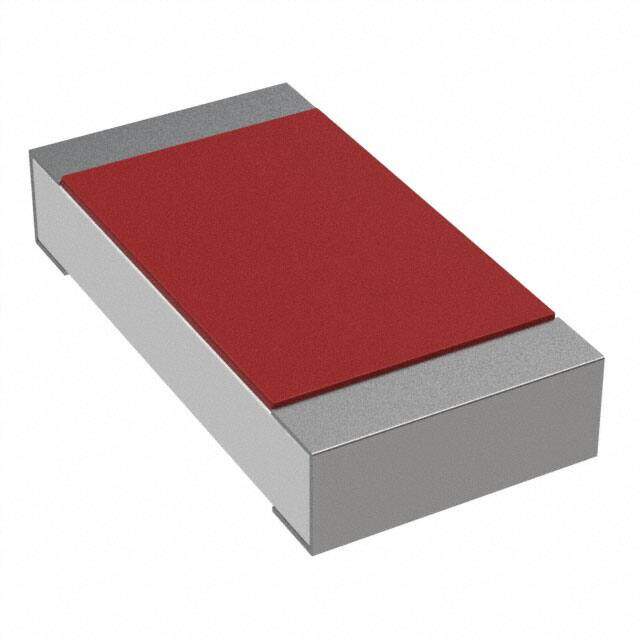

SG732BTTD471K
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
1206 (3216Metric) FIXED RESISTOR SG73 0.126Lx0.063W 3.20mmx1.60mm 0.333W 1/3W 470Ohm ±200ppm/C
PDF
/
Buying Options
Total Price: USD $0.23
Unit Price: USD $0.2288
≥1 USD $0.2288
≥10 USD $0.11968
≥100 USD $0.082192
≥500 USD $0.070752
≥1000 USD $0.05192
≥3000 USD $0.045998
Inventory: 1185
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.028 0.70mm
Height 600μm
Technical
Case Code (Imperial) 1206
Rated Power Dissipation (P) 0.33W
Case Code (Metric) 3216
Resistor Type FIXED RESISTOR
Construction Rectangular
Packing Method TR, Punched Paper, 7 Inch
Voltage - Rated DC 200V
Power Rating 250mW
Voltage - Rated 200V
Power (Watts) 0.333W 1/3W
Composition Thick Film
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Resistance 470Ohm
Temperature Coefficient ±200ppm/°C
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding
JESD-609 Code e3
Tolerance ±10%
Size / Dimension 0.126Lx0.063W 3.20mmx1.60mm
Series SG73
Packaging Tape & Reel (TR)
Operating Temperature -55°C~155°C
Physical
Weight 16.187578mg
Mounting Feature SURFACE MOUNT
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case 1206 (3216 Metric)
Supply Chain
Factory Lead Time 7 Weeks
