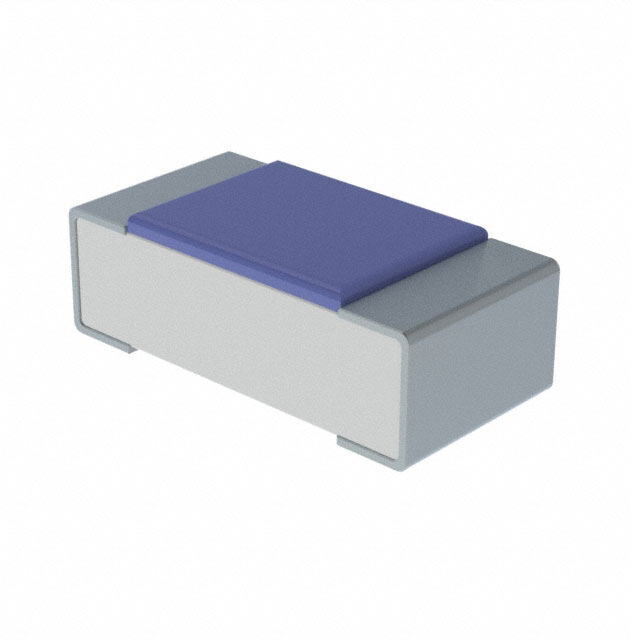

RK73G1JTTD6812D
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
0603 (1608Metric) FIXED RESISTOR RK73G 0.063Lx0.031W 1.60mmx0.80mm 0.1W 1/10W 68.1kOhm ±50ppm/C
PDF
/
Inventory: 1578
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.022 0.55mm
Technical
Working Voltage 75V
Rated Power Dissipation (P) 0.1W
Resistor Type FIXED RESISTOR
Construction Rectangular
Packing Method TR, PUNCHED PAPER, 7 INCH
Additional Feature HIGH PRECISION
Power (Watts) 0.1W 1/10W
Composition Thick Film
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Resistance 68.1kOhm
Temperature Coefficient ±50ppm/°C
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Automotive AEC-Q200
JESD-609 Code e3
Tolerance ±0.5%
Size / Dimension 0.063Lx0.031W 1.60mmx0.80mm
Series RK73G
Packaging Tape & Reel (TR)
Operating Temperature -55°C~155°C
Physical
Mounting Feature SURFACE MOUNT
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case 0603 (1608 Metric)
Supply Chain
Factory Lead Time 10 Weeks
