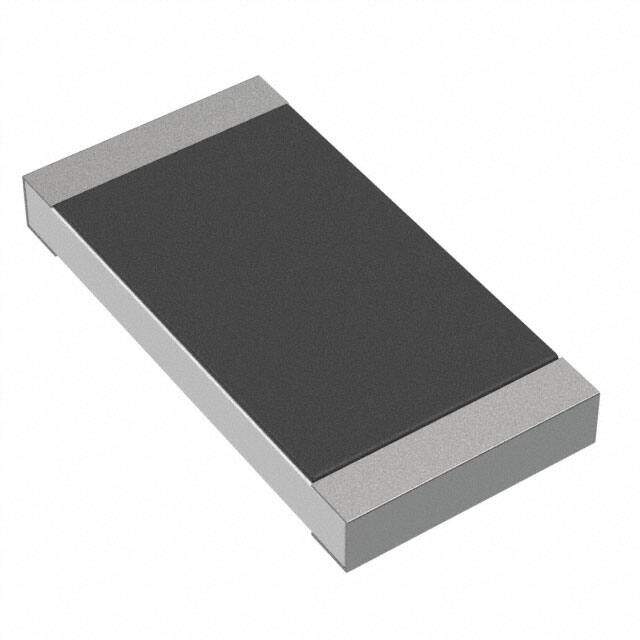

HV732HTTE2004F image
Favorite
HV732HTTE2004F image
Favorite
RoHS
RoHS RoHS compliant
Package 2010 (5025 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description 2010 (5025Metric) FIXED RESISTOR HV73 0.197Lx0.098W 5.00mmx2.50mm 0.5W 1/2W 2MOhm ±100ppm/C
PDF
/
Buying Options
Total Price: USD $0.58
Unit Price: USD $0.5808
≥1 USD $0.5808
≥10 USD $0.33176
≥100 USD $0.237952
≥500 USD $0.208736
≥1000 USD $0.160019
≥3000 USD $0.144575
Inventory: 30111
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.028 0.70mm
Height 600μm

Technical

Case Code (Imperial) 2010
Rated Power Dissipation (P) 0.5W
Case Code (Metric) 5025
Resistor Type FIXED RESISTOR
Construction Rectangular
Packing Method TR, Embossed Plastic, 7 Inch
Voltage - Rated DC 2kV
Power Rating 500mW
Voltage - Rated 2kV
Power (Watts) 0.5W 1/2W
Composition Thick Film
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Resistance 2MOhm
Temperature Coefficient ±100ppm/°C
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature High Voltage, Moisture Resistant
JESD-609 Code e3
Tolerance ±1%
Size / Dimension 0.197Lx0.098W 5.00mmx2.50mm
Series HV73
Packaging Tape & Reel (TR)
Operating Temperature -55°C~155°C

Physical

Mounting Feature SURFACE MOUNT
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case 2010 (5025 Metric)

Supply Chain

Factory Lead Time 8 Weeks
