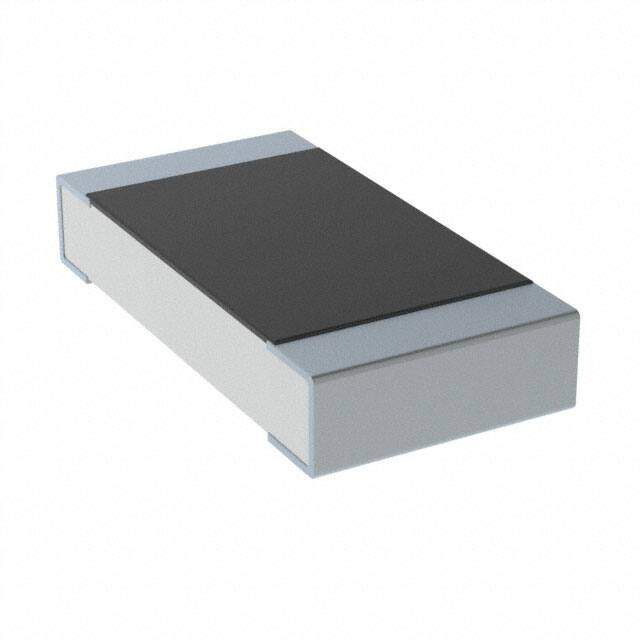

HV732BTTD1503F
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
1206 (3216Metric) FIXED RESISTOR HV73 0.126Lx0.063W 3.20mmx1.60mm 0.25W 1/4W 150kOhm ±100ppm/C
PDF
/
Buying Options
Total Price: USD $0.41
Unit Price: USD $0.4136
≥1 USD $0.4136
≥10 USD $0.22
≥100 USD $0.150656
≥500 USD $0.129712
≥1000 USD $0.095216
≥3000 USD $0.084348
Inventory: 1171
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Package / Case 1206 (3216 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Mounting Feature SURFACE MOUNT
Technical
Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Published 2008
Series HV73
Size / Dimension 0.126Lx0.063W 3.20mmx1.60mm
Tolerance ±1%
JESD-609 Code e3
Feature High Voltage, Moisture Resistant
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient ±100ppm/°C
Resistance 150kOhm
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Composition Thick Film
Power (Watts) 0.25W 1/4W
Voltage - Rated 500V
Power Rating 250mW
Voltage - Rated DC 500V
Packing Method TR, Punched Paper, 7 Inch
Construction Rectangular
Resistor Type FIXED RESISTOR
Case Code (Metric) 3216
Case Code (Imperial) 1206
Dimensions
Height Seated (Max) 0.028 0.70mm
Compliance
RoHS Status ROHS3 Compliant
