MP725-75.0-1%
RoHS
RoHS compliant

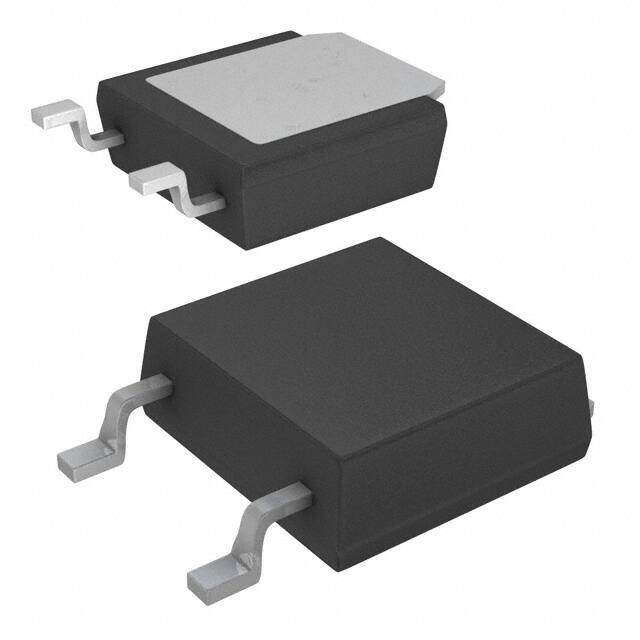

RoHS compliantPackage TO-252-3, DPak (2 Leads + Tab), SC-63
Category Resistors / Chip Resistor - Surface Mount
Description
TO-252-3DPak (2Leads + Tab) SC-63 FIXED RESISTOR MP725 0.325Lx0.320W 8.26mmx8.13mm 25W 75Ohm -20/ +80ppm/C
PDF
/
Buying Options
Total Price: USD $7.86
Unit Price: USD $7.8584
≥1 USD $7.8584
≥10 USD $5.22192
≥100 USD $4.172432
≥500 USD $3.814008
Inventory: 562
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Thickness 2.79mm
Height Seated (Max) 0.120 3.05mm
Height 8.26mm
Technical
Power Dissipation 2.5W
Insulation Resistance 10GOhm
Lead Length 4.06mm
Resistor Type FIXED RESISTOR
Construction Rectangular
Depth 2.79mm
Max Power Dissipation 25W
Packing Method TR
Voltage - Rated DC 200V
Power Rating 25W
Subcategory FIXED RESISTOR
Voltage - Rated 200V
Composition Thick Film
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Resistance 75Ohm
Temperature Coefficient -20/ +80ppm/°C
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Current Sense, Moisture Resistant, Non-Inductive
JESD-609 Code e3
Tolerance ±1%
Size / Dimension 0.325Lx0.320W 8.26mmx8.13mm
Series MP725
Packaging Cut Tape (CT)
Operating Temperature -55°C~150°C
Physical
Terminal Shape GULL WING
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Mount Surface Mount
Supply Chain
Factory Lead Time 9 Weeks
