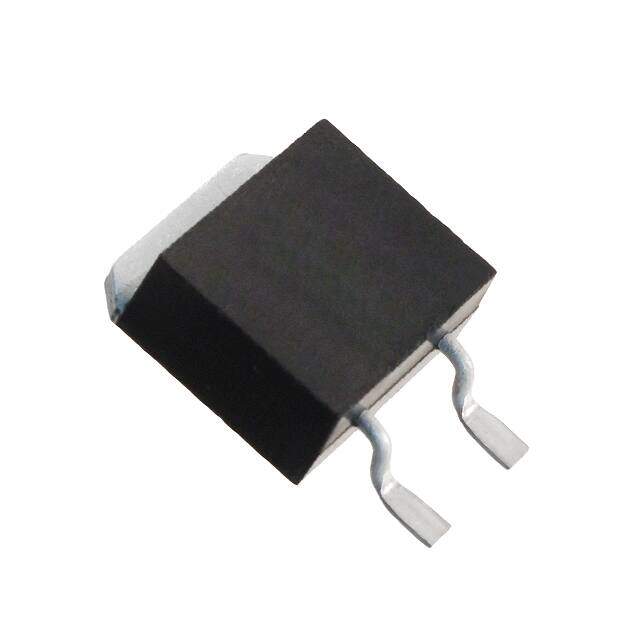

PWR263S-35-5000J image
Favorite
PWR263S-35-5000J image
Favorite

PWR263S-35-5000J

Bourns Inc.
RoHS
RoHS RoHS compliant
Package TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Category Resistors / Chip Resistor - Surface Mount
Description TO-263-3D2Pak (2Leads + Tab) TO-263AB FIXED RESISTOR PWR263S-35 0.398Lx0.409W 10.10mmx10.40mm 500Ohm ±100ppm/C ±5%
PDF
/
Buying Options
Total Price: USD $3.09
Unit Price: USD $3.0888
≥1 USD $3.0888
≥10 USD $2.61184
≥100 USD $2.590016
≥500 USD $2.369488
≥1000 USD $1.928696
≥3000 USD $1.763379
Inventory: 267
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Package / Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Surface Mount YES
Terminal Shape GULL WING
Mounting Feature SURFACE MOUNT

Technical

Operating Temperature -55°C~155°C
Packaging Tube
Published 2015
Series PWR263S-35
Size / Dimension 0.398Lx0.409W 10.10mmx10.40mm
Tolerance ±5%
JESD-609 Code e3
Feature Automotive AEC-Q200, Current Sense, Pulse Withstanding
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Temperature Coefficient ±100ppm/°C
Resistance 500Ohm
Terminal Finish Matte Tin (Sn)
Composition Thick Film
Max Power Dissipation 35W
Construction Rectangular
Resistor Type FIXED RESISTOR
Base Part Number PWR263S
Size Code 4140

Dimensions

Height 4.8768mm
Height Seated (Max) 0.192 4.88mm

Compliance

RoHS Status ROHS3 Compliant
Ratings AEC-Q200
