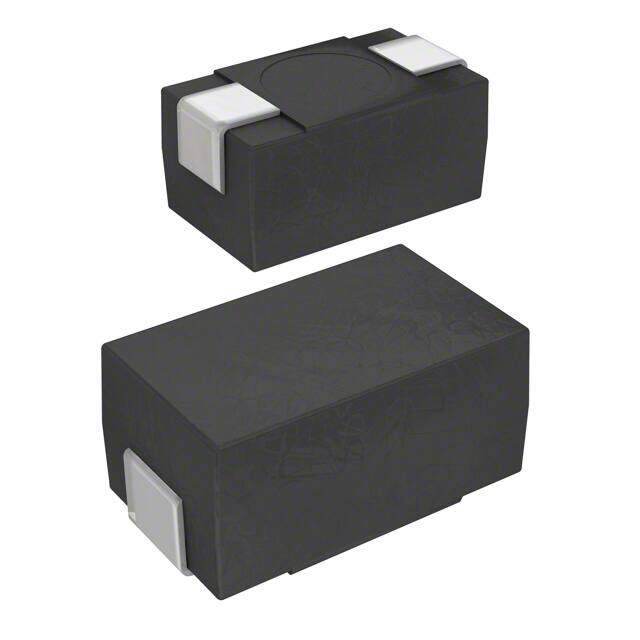

PWR2615WR050F
RoHS
RoHS compliant
RoHS compliantPackage 2615 J-Lead
Category Resistors / Chip Resistor - Surface Mount
Description
2615J-Lead PWR2615 0.260Lx0.154W 6.60mmx3.90mm 1W 50mOhms ±150ppm/C
PDF
/
Inventory: 7339
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 3.9mm
Length 6.6mm
Height Seated (Max) 0.142 3.60mm
Height 3.6068mm
Technical
Case Code (Imperial) 2615
Case Code (Metric) 6639
Military Standard Not
Base Part Number PWR2615
Depth 3.9mm
Max Power Dissipation 1W
Power Rating 1W
Voltage - Rated 58V
Power (Watts) 1W
Composition Wirewound
Min Operating Temperature -55°C
Max Operating Temperature 275°C
Resistance 50mOhms
Temperature Coefficient ±150ppm/°C
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Feature Current Sense, Moisture Resistant, Pulse Withstanding
Tolerance ±1%
Size / Dimension 0.260Lx0.154W 6.60mmx3.90mm
Series PWR2615
Published 2011
Packaging Bulk
Operating Temperature -55°C~275°C
Physical
Package / Case 2615 J-Lead
Contact Plating Tin
Supply Chain
Factory Lead Time 14 Weeks
