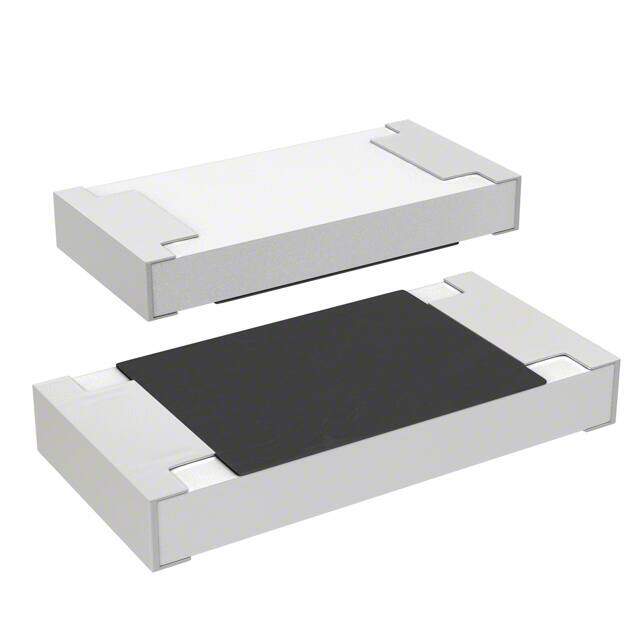

CRL1206-JW-2R40ELF
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
1206 (3216Metric) FIXED RESISTOR CRL 0.126Lx0.063W 3.20mmx1.60mm 0.25W 1/4W 2.4Ohm ±200ppm/C
PDF
/
Inventory: 3750
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.028 0.70mm
Height 711.2μm
Technical
Case Code (Imperial) 1206
Case Code (Metric) 3216
Base Part Number CRL1206
Resistor Type FIXED RESISTOR
Construction Chip
Max Power Dissipation 250mW
Packing Method TR, PAPER, 7 INCH
Power Rating 250mW
Subcategory FIXED RESISTOR
Power (Watts) 0.25W 1/4W
Composition Thick Film
Resistance 2.4Ohm
Temperature Coefficient ±200ppm/°C
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Tolerance ±5%
Size / Dimension 0.126Lx0.063W 3.20mmx1.60mm
Series CRL
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Terminal Shape WRAPAROUND
Package / Case 1206 (3216 Metric)
Mount Surface Mount
Contact Plating Tin
