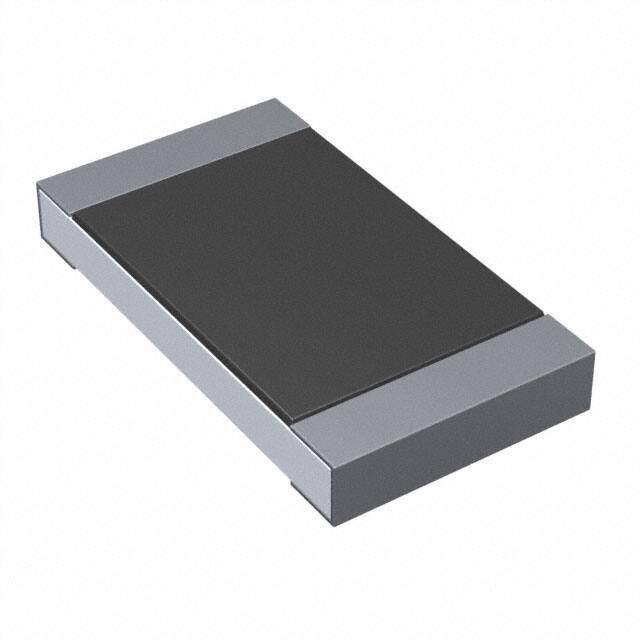

CR2010-JW-103ELF
RoHS
RoHS compliant
RoHS compliantPackage 2010 (5025 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
2010 (5025Metric) FIXED RESISTOR CR2010 0.197Lx0.098W 5.00mmx2.50mm 0.5W 1/2W 10kOhm ±200ppm/C
PDF
/
Buying Options
Total Price: USD $0.15
Unit Price: USD $0.1496
≥1 USD $0.1496
≥10 USD $0.08008
≥100 USD $0.054736
≥500 USD $0.04708
≥1000 USD $0.034531
≥3000 USD $0.030589
Inventory: 1135
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.028 0.70mm
Height 600μm
Technical
Case Code (Imperial) 2010
Rated Power Dissipation (P) 0.5W
Case Code (Metric) 5025
Resistor Type FIXED RESISTOR
Construction Rectangular
Packing Method TR, EMBOSSED PLASTIC, 7 INCH
Power Rating 500mW
Voltage - Rated 200V
Power (Watts) 0.5W 1/2W
Composition Thick Film
Resistance 10kOhm
Temperature Coefficient ±200ppm/°C
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±5%
Size / Dimension 0.197Lx0.098W 5.00mmx2.50mm
Series CR2010
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -55°C~155°C
Physical
Terminal Shape WRAPAROUND
Package / Case 2010 (5025 Metric)
Mount Surface Mount
Contact Plating Tin
Supply Chain
Factory Lead Time 12 Weeks
