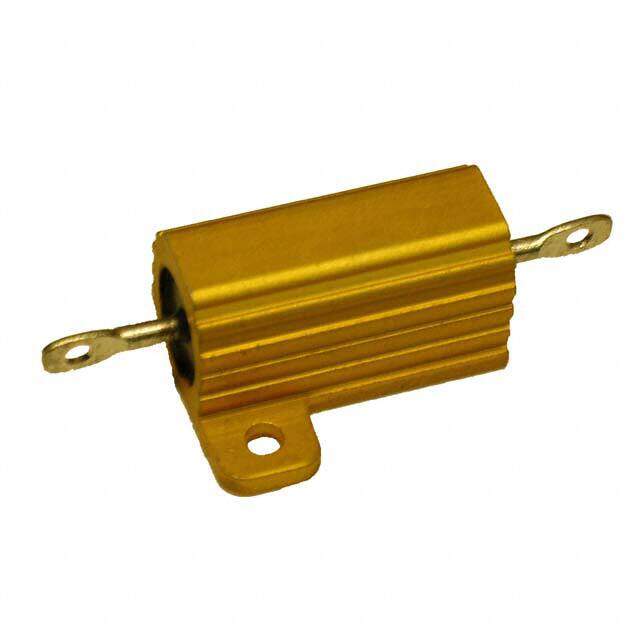

KAL100FB100R image
Favorite
KAL100FB100R image
Favorite
RoHS
RoHS RoHS compliant
Package Axial, Box
Category Resistors / Chassis Mount Resistors
Description RES CHAS MNT 100 OHM 1% 100W
PDF
/
Inventory: 5477
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 20 Weeks

Physical

Package / Case Axial, Box
Surface Mount NO
Terminal Shape LUG
Mounting Feature Flanges
Housing Material Aluminium

Technical

Operating Temperature -55°C~275°C
Packaging Bulk
Published 2010
Series KAL
Size / Dimension 3.504Lx2.756W 89.00mmx70.00mm
Tolerance ±1%
JESD-609 Code e3
Feature Moisture Resistant
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient ±20ppm/°C
Resistance 100Ohm
Terminal Finish Matte Tin (Sn)
Composition Wirewound
HTS Code 8533.29.00.00
Power Rating 100W
Max Power Dissipation 100W
Construction Rectangular
Resistor Type FIXED RESISTOR
Lead Style Solder Lugs
Lead/Base Style Solder
Coating, Housing Type Aluminum

Dimensions

Height 56.388mm
Height Seated (Max) 1.791 45.50mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
