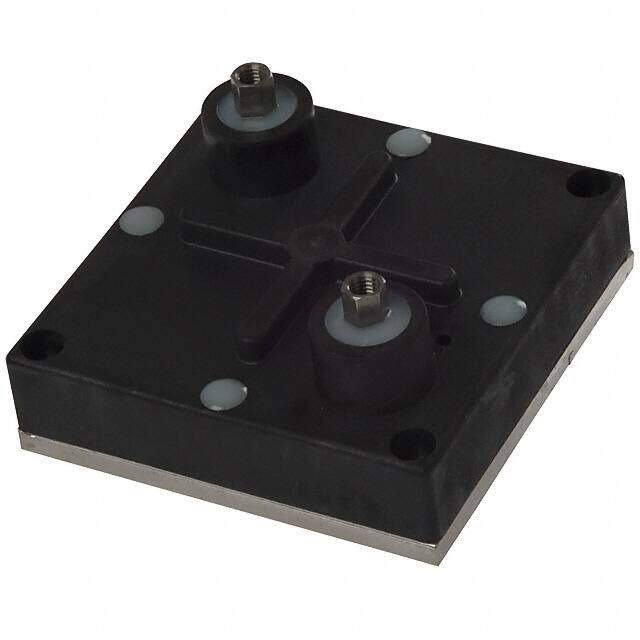

TA1K0PH100RKE
RoHS
RoHS compliant
RoHS compliantPackage Box
Category Resistors / Chassis Mount Resistors
Description
RES CHAS MNT 100 OHM 10% 1000W
PDF
/
Inventory: 4156
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 22 Weeks
Physical
Package / Case Box
Mounting Feature Flanges
Number of Pins 2
Housing Material Epoxy Coated
Technical
Operating Temperature -55°C~85°C
Packaging Bulk
Published 2010
Series TAP1000
Size / Dimension 3.000Lx3.000W 76.20mmx76.20mm
Tolerance ±10%
JESD-609 Code e3
Feature Moisture Resistant
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Screw
ECCN Code EAR99
Temperature Coefficient ±250ppm/°C
Resistance 100Ohm
Composition Thick Film
Power (Watts) 1000W
Voltage - Rated 2kV
Subcategory Fixed Resistors
Power Rating 1kW
Voltage - Rated DC 2kV
Max Power Dissipation 1kW
Construction Rectangular
Resistor Type FIXED RESISTOR
Rated Power Dissipation (P) 1000W
Lead Style #10-32 Threaded
Lead/Base Style Threaded
Coating, Housing Type Epoxy Coated
Dimensions
Height 31.6992mm
Height Seated (Max) 1.548 39.31mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
