L12J1K0E
RoHS
RoHS compliant
RoHS compliantPackage Radial, Tubular
Category Resistors / Chassis Mount Resistors
Description

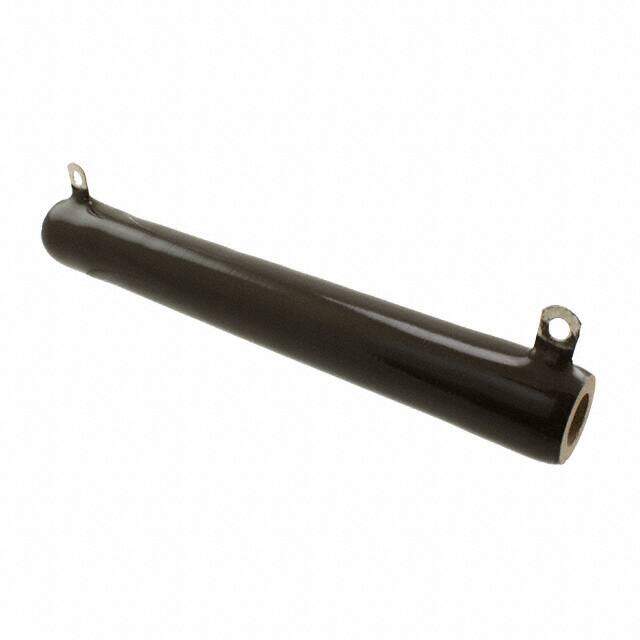

Wirewound Resistors 12watt 1K 5% High Power
PDF
/
Buying Options
Total Price: USD $5.1
Unit Price: USD $5.103242
≥1 USD $5.103242
≥200 USD $1.974602
≥500 USD $1.906331
≥1000 USD $1.870883
Inventory: 8240
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Diameter 7.94mm
Technical
Coating, Housing Type Vitreous Enamel Coated
Lead/Base Style Solder
Lead Style Solder Lugs
Voltage - Rated AC 3V
Resistor Type FIXED RESISTOR
Construction All-Welded
Depth 7.94mm
Technology WIRE WOUND
Max Power Dissipation 12W
Voltage - Rated DC 565V
Power Rating 12W
Subcategory Fixed Resistors
Additional Feature FLAME PROOF
Composition Wirewound
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Resistance 1kOhm
Temperature Coefficient ±260ppm/°C
ECCN Code EAR99
Termination Lug
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Flame Retardant Coating, Safety
JESD-609 Code e1
Tolerance ±5%
Size / Dimension 0.313Diax1.748L 7.94mmx44.40mm
Series 270
Published 2008
Packaging Bulk
Operating Temperature -55°C~350°C
Physical
Housing Material Vitreous Enamel Coated
Number of Pins 2
Mounting Feature Brackets (not included)
Terminal Shape LUG
Package / Case Radial, Tubular
Mount Bolt
Supply Chain
Factory Lead Time 10 Weeks
