825F2K0E
RoHS
RoHS compliant
RoHS compliantPackage Axial, Box
Category Resistors / Chassis Mount Resistors
Description

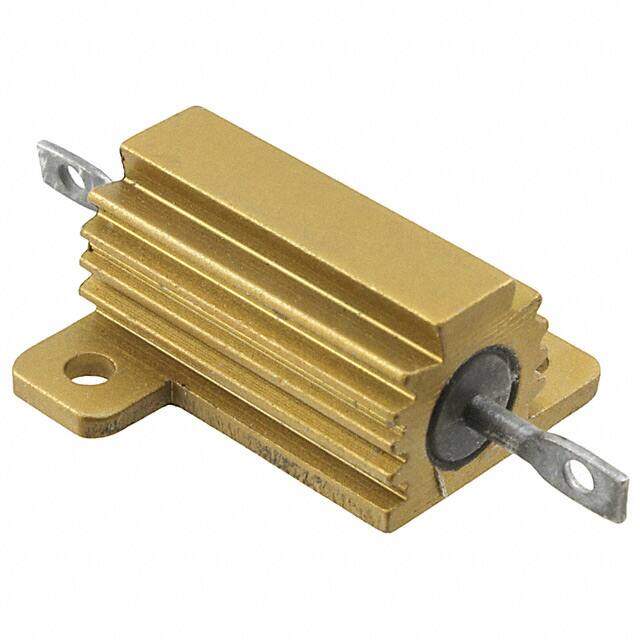

Wirewound Resistors 25watt 2K 1%
PDF
/
Buying Options
Total Price: USD $7.65
Unit Price: USD $7.651478
≥1 USD $7.651478
≥10 USD $7.218376
≥100 USD $6.809796
≥500 USD $6.424328
≥1000 USD $6.060693
Inventory: 8400
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 26 Weeks
Physical
Package / Case Axial, Box
Surface Mount NO
Terminal Shape LUG
Mounting Feature Flanges
Housing Material Aluminium
Technical
Operating Temperature -55°C~275°C
Packaging Tray
Published 2006
Series Metal-Mite?89
Size / Dimension 1.062Lx1.094W 26.98mmx27.79mm
Tolerance ±1%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Temperature Coefficient ±20ppm/°C
Resistance 2kOhm
Composition Wirewound
Voltage - Rated 520V
Additional Feature POWER DISSIPATED USING HEAT SINK
Subcategory FIXED RESISTOR
Power Rating 25W
Max Power Dissipation 25W
Technology WIRE WOUND
Depth 27.79mm
Construction Molded
Resistor Type FIXED RESISTOR
Lead Length 11.13mm
Lead Style Solder Lugs
Lead/Base Style Solder
Coating, Housing Type Aluminum
Dimensions
Diameter 18.26mm
Height 14.28mm
Height Seated (Max) 0.556 14.12mm
Compliance
RoHS Status ROHS3 Compliant
