810F50KE
RoHS
RoHS compliant
RoHS compliantPackage Axial, Box
Category Resistors / Chassis Mount Resistors
Description

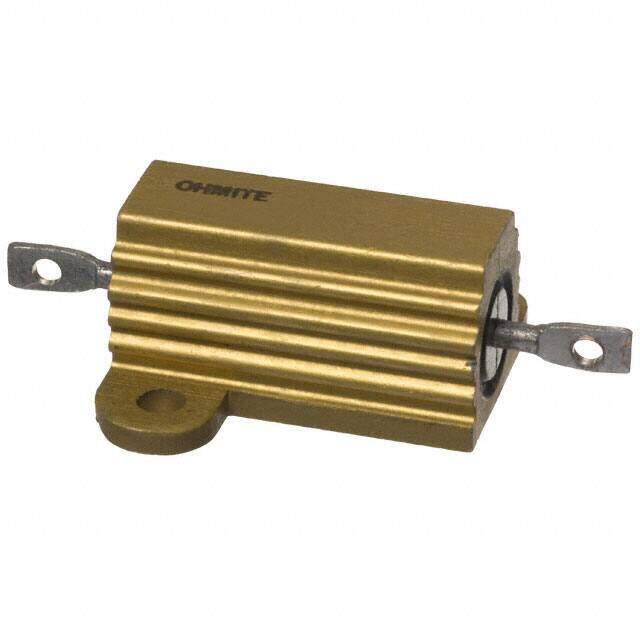

Wirewound Resistors 10watt 50K 1%
PDF
/
Inventory: 4755
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Subcategory FIXED RESISTOR
Additional Feature POWER DISSIPATED USING HEAT SINK
Voltage - Rated 320V
Composition Wirewound
Resistance 50kOhm
Temperature Coefficient ±20ppm/°C
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±1%
Size / Dimension 0.750Lx0.812W 19.05mmx20.63mm
Series Metal-Mite?89
Published 2006
Packaging Tray
Operating Temperature -55°C~275°C
Coating, Housing Type Aluminum
Lead/Base Style Solder
Lead Style Solder Lugs
Size Code 7581
Lead Length 7.93mm
Resistor Type FIXED RESISTOR
Construction Molded
Technology WIRE WOUND
Max Power Dissipation 10W
Voltage - Rated DC 320V
Power Rating 10W
Physical
Housing Material Aluminium
Mounting Feature Flanges
Terminal Shape LUG
Surface Mount NO
Package / Case Axial, Box
Supply Chain
Factory Lead Time 26 Weeks
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.400 10.16mm
Height 11.0998mm
Diameter 14.27mm
