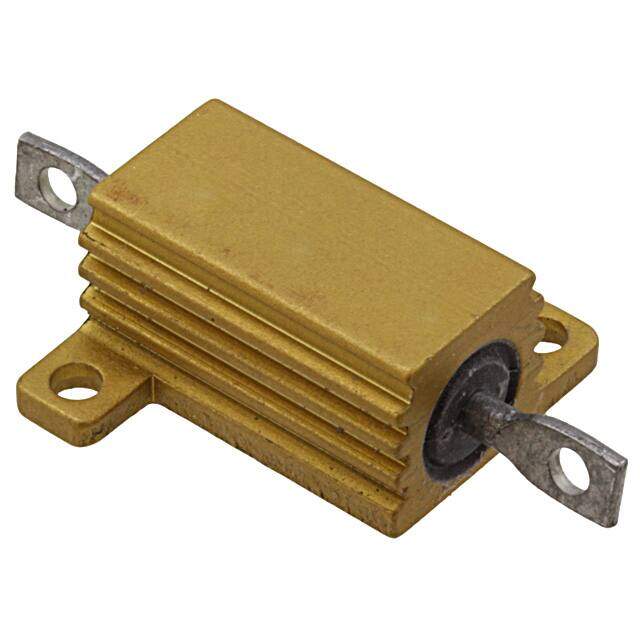

810F2R0E
RoHS
RoHS compliant
RoHS compliantPackage Axial, Box
Category Resistors / Chassis Mount Resistors
Description
RES CHAS MNT 2 OHM 1% 10W
PDF
/
Buying Options
Total Price: USD $5.16
Unit Price: USD $5.163253
≥1 USD $5.163253
≥10 USD $4.870998
≥100 USD $4.595274
≥500 USD $4.335164
≥1000 USD $4.089784
Inventory: 1126
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 26 Weeks
Physical
Package / Case Axial, Box
Surface Mount NO
Terminal Shape LUG
Mounting Feature Flanges
Number of Pins 2
Housing Material Aluminium
Technical
Operating Temperature -55°C~275°C
Packaging Tray
Published 2006
Series Metal-Mite?89
Size / Dimension 0.750Lx0.812W 19.05mmx20.63mm
Tolerance ±1%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Temperature Coefficient ±50ppm/°C
Resistance 2Ohm
Composition Wirewound
Additional Feature RATED POWER IS DISSIPATED USING HEAT SINK
Subcategory FIXED RESISTOR
Power Rating 10W
Voltage - Rated DC 320V
Max Power Dissipation 10W
Technology WIRE WOUND
Construction Molded
Resistor Type FIXED RESISTOR
Voltage - Rated AC 4V
Lead Length 7.93mm
Size Code 7581
Lead Style Solder Lugs
Lead/Base Style Solder
Coating, Housing Type Aluminum
Dimensions
Diameter 14.27mm
Height 11.0998mm
Height Seated (Max) 0.400 10.16mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
