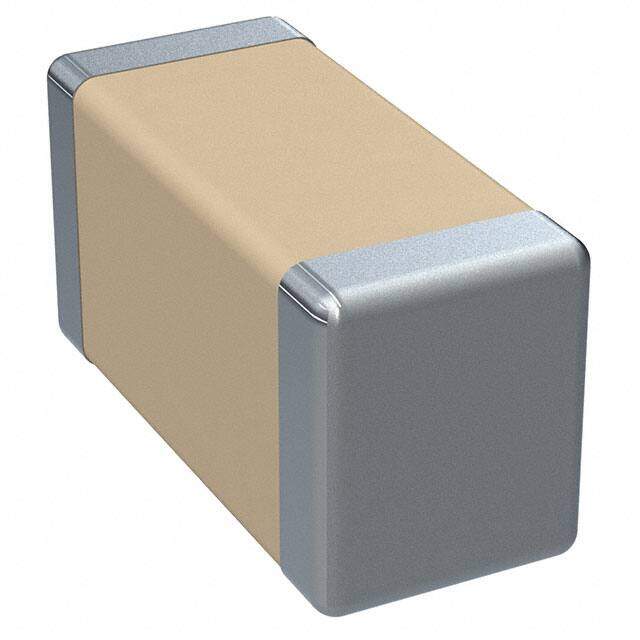

CS1206KKX7R7BB105

Yageo
RoHS
RoHS RoHS compliant
Package 1206 (3216 Metric)
Category Capacitors / Ceramic Capacitors
Description 1206 (3216Metric) CERAMIC CAPACITOR CS 16V 1muF ±10% X7R
PDF
/
Inventory: 4770
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 33 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount, MLCC
Package / Case 1206 (3216 Metric)
Terminal Shape WRAPAROUND
Dielectric Material CERAMIC

Technical

Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2016
Series CS
Size / Dimension 0.126Lx0.063W 3.20mmx1.60mm
Tolerance ±10%
JESD-609 Code e3
Feature Soft Termination
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient X7R
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Applications Boardflex Sensitive
Voltage - Rated 16V
HTS Code 8532.24.0020
Capacitance 1μF
Packing Method TR, BLISTER, 7 INCH
Capacitor Type CERAMIC CAPACITOR
Temperature Characteristics Code X7R
Multilayer Yes
Rated (DC) Voltage (URdc) 16V

Dimensions

Height 1.15mm
Length 3.2mm
Width 1.6mm
Thickness (Max) 0.053 1.35mm
Thickness 1.3462mm

Compliance

RoHS Status ROHS3 Compliant
