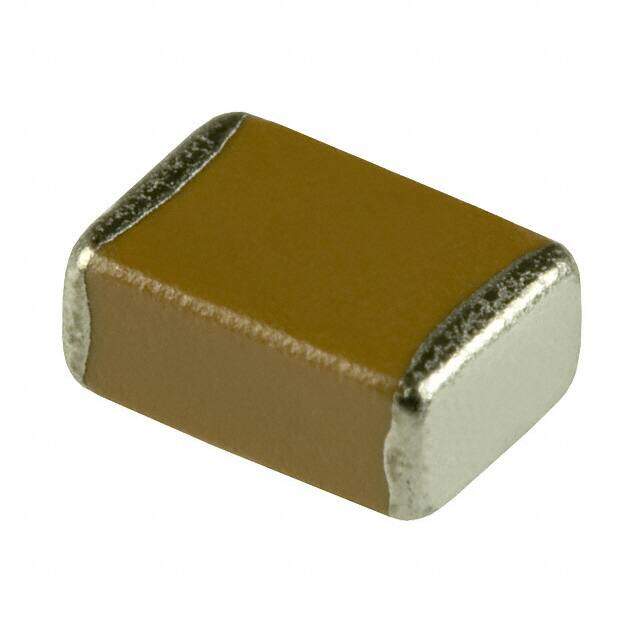

CC1812KKX7RBBB104
RoHS
RoHS compliant
RoHS compliantPackage 1812 (4532 Metric)
Category Capacitors / Ceramic Capacitors
Description
1812 (4532Metric) CC 500V 0.1muF ±10% X7R
PDF
/
Buying Options
Total Price: USD $0.72
Unit Price: USD $0.7216
≥1 USD $0.7216
≥10 USD $0.50688
≥100 USD $0.426976
≥500 USD $0.347776
≥1000 USD $0.289784
Inventory: 1156
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 33 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount, MLCC
Package / Case 1812 (4532 Metric)
Terminal Shape WRAPAROUND
Number of Pins 2
Dielectric Material Ceramic
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2005
Series CC
Size / Dimension 0.177Lx0.126W 4.50mmx3.20mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient X7R
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Applications General Purpose
Capacitance 0.1μF
Voltage - Rated DC 500V
Packing Method TR, BLISTER, 7 INCH
Depth 3.2mm
Voltage - Rated AC 500V
Case Code (Metric) 4532
Case Code (Imperial) 1812
Temperature Characteristics Code X7R
Multilayer Yes
Dimensions
Height 1.6mm
Length 4.5mm
Thickness (Max) 0.071 1.80mm
Thickness 1.8034mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
