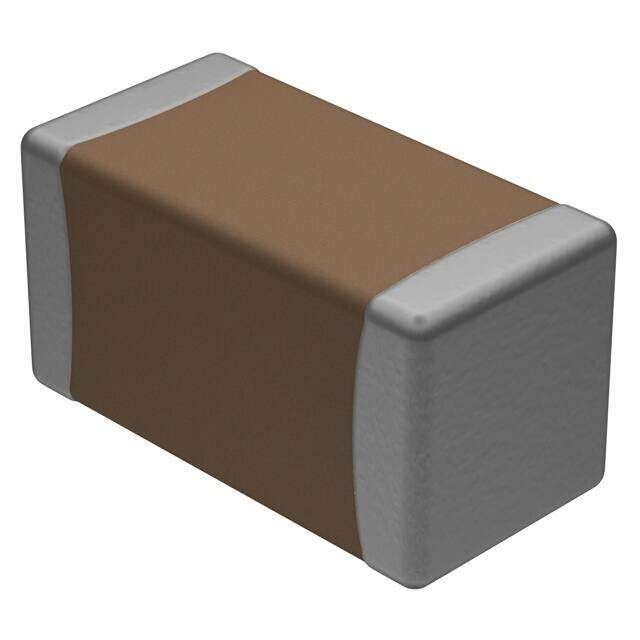

VJ1206Y151MXGAT5Z
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Capacitors / Ceramic Capacitors
Description
1206 (3216Metric) CERAMIC CAPACITOR VJ HVArc Guard? 1000V 1kV 150pF ±20% X7R
PDF
/
Inventory: 9843
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount, MLCC
Package / Case 1206 (3216 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Dielectric Material CERAMIC
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2017
Series VJ HVArc Guard?
Size / Dimension 0.126Lx0.063W 3.20mmx1.60mm
Tolerance ±20%
JESD-609 Code e3
Feature High Voltage
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient X7R
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Applications General Purpose
Voltage - Rated 1000V 1kV
HTS Code 8532.24.00.20
Capacitance 150pF
Packing Method TR, EMBOSSED PLASTIC, 7 INCH
Capacitor Type CERAMIC CAPACITOR
Temperature Characteristics Code X7R
Multilayer Yes
Rated (DC) Voltage (URdc) 1000V
Dimensions
Thickness (Max) 0.067 1.70mm
Compliance
RoHS Status ROHS3 Compliant
