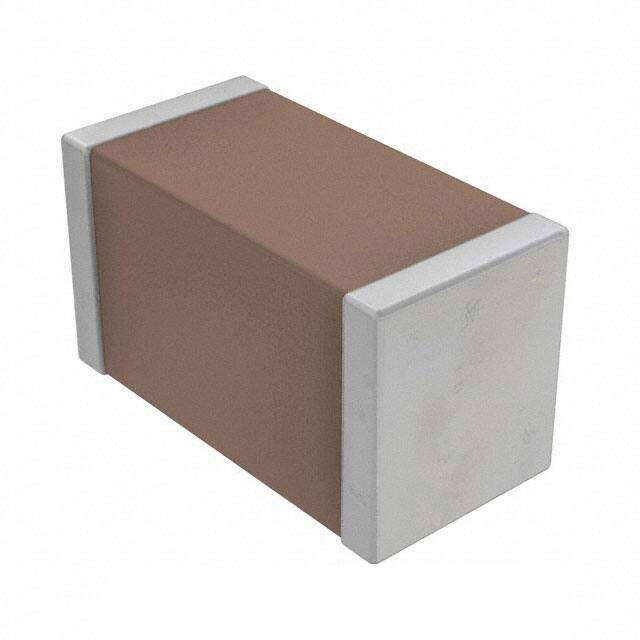

VJ0402A1R5CNAAJ image
Favorite
VJ0402A1R5CNAAJ image
Favorite

VJ0402A1R5CNAAJ

Vishay Vitramon
RoHS
RoHS RoHS compliant
Package 0402 (1005 Metric)
Category Capacitors / Ceramic Capacitors
Description 0402 (1005Metric) CERAMIC CAPACITOR VJ 50V 1.5pF ±0.25pF C0G NP0
PDF
/
Inventory: 7427
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount, MLCC, Epoxy
Package / Case 0402 (1005 Metric)
Terminal Shape WRAPAROUND
Weight 652.039032μg

Technical

Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2016
Series VJ
Size / Dimension 0.039Lx0.020W 1.00mmx0.50mm
Tolerance ±0.25pF
JESD-609 Code e4
Feature Epoxy Mountable, Non-Magnetic
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient C0G NP0
Terminal Finish Silver/Palladium (Ag/Pd)
Applications General Purpose
HTS Code 8532.24.00.20
Capacitance 1.5pF
Voltage - Rated DC 50V
Packing Method TR, 7 INCH
Depth 500μm
Case Code (Metric) 1005
Case Code (Imperial) 0402
Capacitor Type CERAMIC CAPACITOR
Dielectric C0G
Temperature Characteristics Code C0G
Multilayer Yes
Voltage 50V

Dimensions

Height 600μm
Length 1mm
Width 0.5mm
Thickness (Max) 0.024 0.60mm
Thickness 609.6μm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
