B37984M5684K051
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Capacitors / Ceramic Capacitors
Description

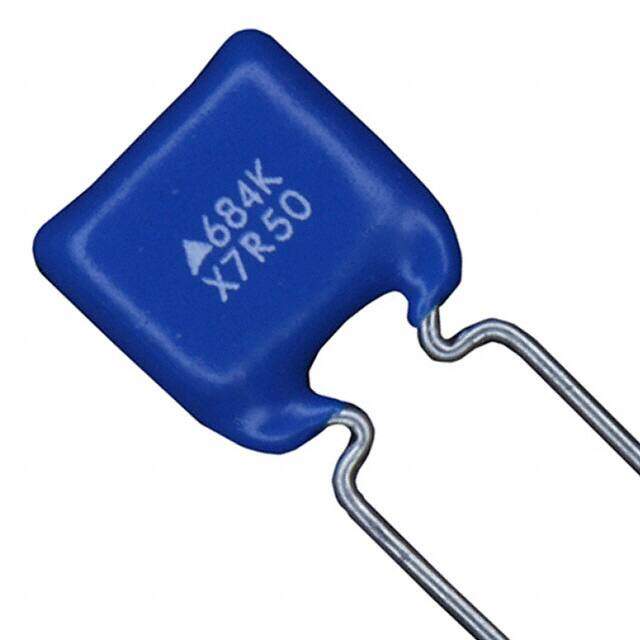

Radial CERAMIC CAPACITOR B37984M 50V 0.68muF ±10% X7R
PDF
/
Inventory: 7695
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Through Hole
Package / Case Radial
Surface Mount NO
Terminal Shape WIRE
Dielectric Material CERAMIC
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Series B37984M
Size / Dimension 0.354Lx0.295W 9.00mmx7.50mm
Tolerance ±10%
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient X7R
Terminal Finish TIN OVER NICKEL
Applications Automotive
Voltage - Rated 50V
HTS Code 8532.24.00.60
Capacitance 0.68μF
Packing Method TR
Reach Compliance Code unknown
Capacitor Type CERAMIC CAPACITOR
Lead Spacing 0.197 5.00mm
Temperature Characteristics Code X7R
Multilayer Yes
Rated (DC) Voltage (URdc) 50V
Lead Style Formed Leads - Kinked
Dimensions
Height Seated (Max) 0.098 2.50mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
