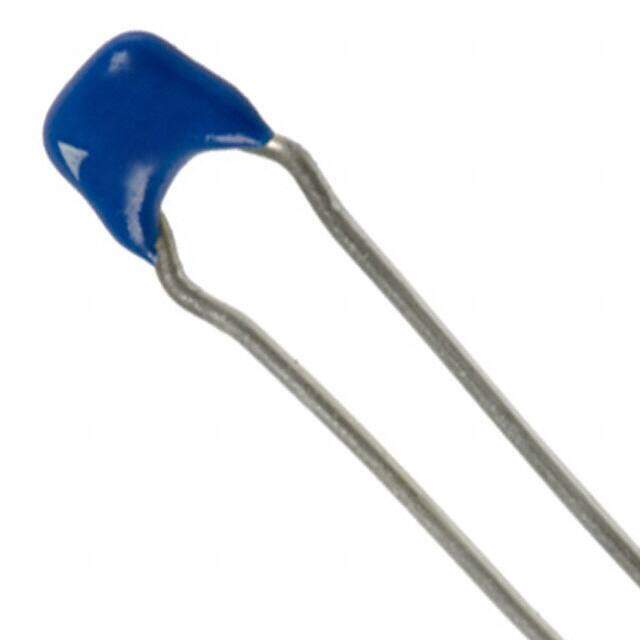

B37981M1103K000
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Capacitors / Ceramic Capacitors
Description
Radial CERAMIC CAPACITOR B37981M 100V 10000pF ±10% X7R
PDF
/
Inventory: 6693
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Through Hole
Package / Case Radial
Surface Mount NO
Terminal Shape WIRE
Dielectric Material CERAMIC
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series B37981M
Size / Dimension 0.217Lx0.197W 5.50mmx5.00mm
Tolerance ±10%
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient X7R
Terminal Finish TIN OVER NICKEL
Applications Automotive
Voltage - Rated 100V
HTS Code 8532.24.00.60
Capacitance 10000pF
Reach Compliance Code unknown
Capacitor Type CERAMIC CAPACITOR
Lead Spacing 0.098 2.50mm
Temperature Characteristics Code X7R
Multilayer Yes
Rated (DC) Voltage (URdc) 100V
Lead Style Formed Leads - Kinked
Dimensions
Height Seated (Max) 0.098 2.50mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
