B37979N1680J051
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Capacitors / Ceramic Capacitors
Description

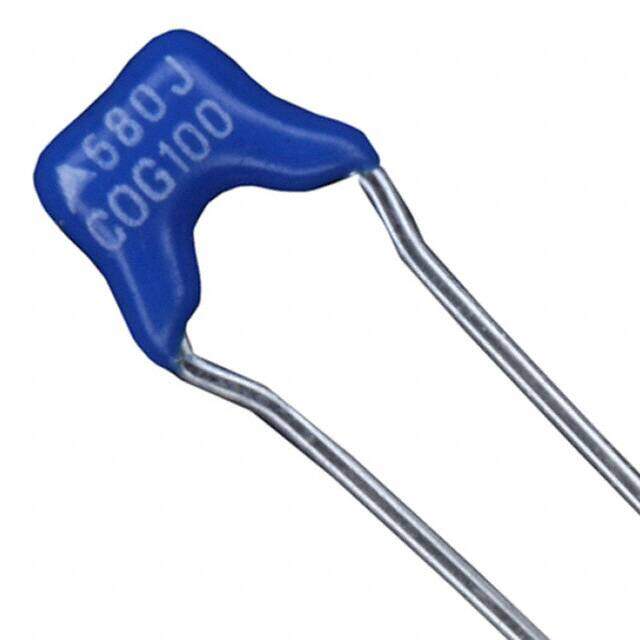

Radial CERAMIC CAPACITOR B37979N 100V 68pF ±5% C0G NP0
PDF
/
Inventory: 2827
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Through Hole
Package / Case Radial
Surface Mount NO
Terminal Shape WIRE
Dielectric Material CERAMIC
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Series B37979N
Size / Dimension 0.217Lx0.197W 5.50mmx5.00mm
Tolerance ±5%
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient C0G NP0
Terminal Finish TIN
Applications RF, Microwave, High Frequency
Voltage - Rated 100V
HTS Code 8532.24.00.60
Capacitance 68pF
Packing Method TR, CARDBOARD, 14 INCH
Reach Compliance Code unknown
Capacitor Type CERAMIC CAPACITOR
Lead Spacing 0.098 2.50mm
Temperature Characteristics Code C0G
Multilayer Yes
Rated (DC) Voltage (URdc) 100V
Lead Style Formed Leads - Kinked
Dimensions
Height Seated (Max) 0.217 5.50mm
Compliance
RoHS Status ROHS3 Compliant
