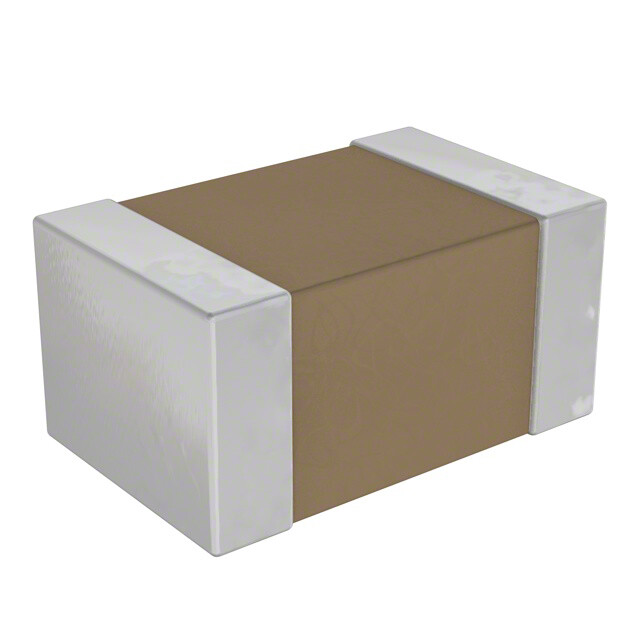

B37931K5682K060
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Capacitors / Ceramic Capacitors
Description
0603 (1608Metric) CERAMIC CAPACITOR B37931K 50V 6800pF ±10% X7R
PDF
/
Inventory: 1676
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount, MLCC
Package / Case 0603 (1608 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Dielectric Material CERAMIC
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Series B37931K
Size / Dimension 0.063Lx0.031W 1.60mmx0.80mm
Tolerance ±10%
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient X7R
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Applications Automotive
Voltage - Rated 50V
HTS Code 8532.24.00.20
Capacitance 6800pF
Packing Method TR, CARDBOARD, 7 INCH
Reach Compliance Code unknown
Capacitor Type CERAMIC CAPACITOR
Temperature Characteristics Code X7R
Multilayer Yes
Rated (DC) Voltage (URdc) 50V
Dimensions
Height 0.8mm
Length 1.6mm
Width 0.8mm
Thickness (Max) 0.035 0.90mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
