B37871K5220J060
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Capacitors / Ceramic Capacitors
Description

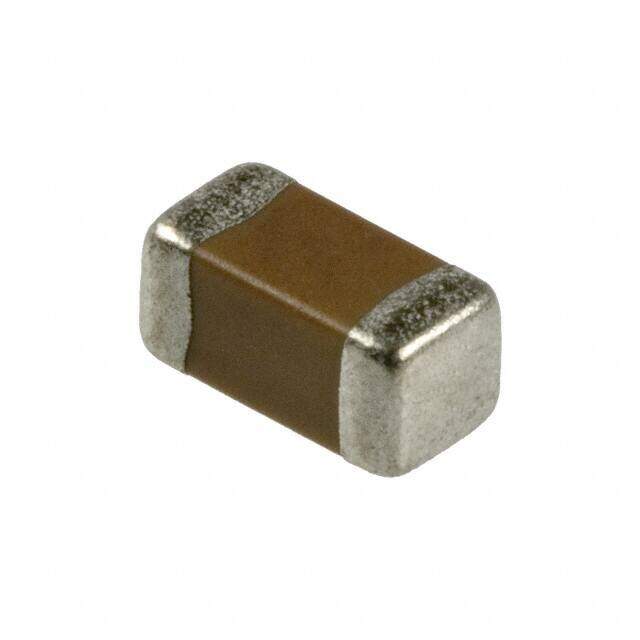

1206 (3216Metric) CERAMIC CAPACITOR B37871K 50V 22pF ±5% C0G NP0
PDF
/
Inventory: 7538
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount, MLCC
Package / Case 1206 (3216 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Dielectric Material CERAMIC
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Series B37871K
Size / Dimension 0.126Lx0.063W 3.20mmx1.60mm
Tolerance ±5%
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient C0G NP0
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Applications Automotive
Voltage - Rated 50V
HTS Code 8532.24.00.20
Capacitance 22pF
Packing Method TR, CARDBOARD, 7 INCH
Reach Compliance Code unknown
Capacitor Type CERAMIC CAPACITOR
Temperature Characteristics Code C0G
Multilayer Yes
Rated (DC) Voltage (URdc) 50V
Custom Capabilities Alternative Capacitance Available On Req
Dimensions
Height 0.8mm
Length 3.2mm
Width 1.6mm
Thickness (Max) 0.035 0.90mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
