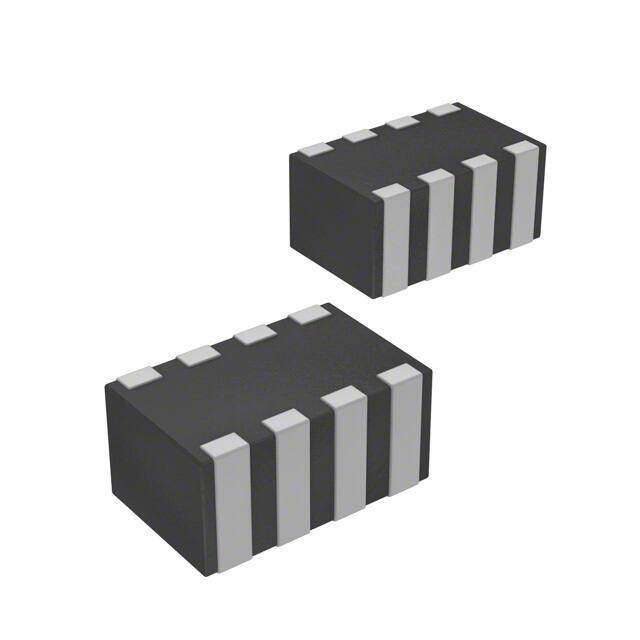

CLLD11X7R1A104M
RoHS
/
Package 0805 (2012 Metric)
Category Capacitors / Ceramic Capacitors
Description
0805 (2012Metric) CERAMIC CAPACITOR CLL 10V 0.1muF ±20% X7R
PDF
/
Inventory: 1340
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Thickness 558.8μm
Thickness (Max) 0.022 0.55mm
Height 550μm
Technical
Multilayer Yes
Temperature Characteristics Code X7R
Number of Elements 4
Capacitor Type CERAMIC CAPACITOR
Case Code (Imperial) 0805
Case Code (Metric) 2012
Packing Method TR
Voltage - Rated DC 10V
Capacitance 0.1μF
Applications Bypass, Decoupling
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Temperature Coefficient X7R
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Low ESL (Multi-Terminal)
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.079Lx0.049W 2.00mmx1.25mm
Series CLL
Published 2001
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Dielectric Material CERAMIC
Terminal Shape WRAPAROUND
Package / Case 0805 (2012 Metric)
Mounting Type Surface Mount, MLCC
Mount Surface Mount
