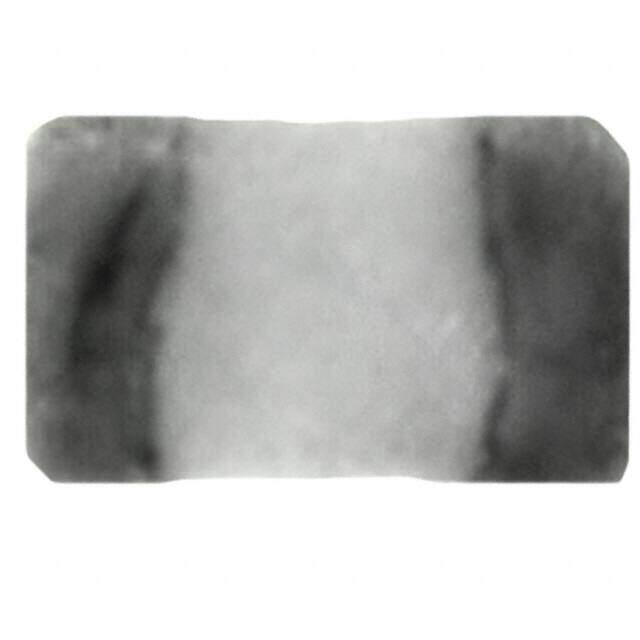

ECD-GZE2R2B
RoHS
/
Package 0201 (0603 Metric)
Category Capacitors / Ceramic Capacitors
Description
ECD CERAMIC CAPACITOR 0201 (0603Metric) Ceramic Capacitor 0.024Lx0.012W 0.60mmx0.30mm C0G NP0 ±0.1pF 2.2pF
PDF
/
Inventory: 5051
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount, MLCC
Package / Case 0201 (0603 Metric)
Terminal Shape WRAPAROUND
Weight 170.097139μg
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2006
Series ECD
Size / Dimension 0.024Lx0.012W 0.60mmx0.30mm
Tolerance ±0.1pF
JESD-609 Code e3
Feature High Q, Low Loss
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient C0G NP0
Terminal Finish Tin (Sn)
Applications RF, Microwave, High Frequency
HTS Code 8532.24.00.20
Capacitance 2.2pF
Voltage - Rated DC 25V
Packing Method TR, PAPER, 7 INCH
Reach Compliance Code unknown
Case Code (Metric) 0603
Case Code (Imperial) 0201
Capacitor Type CERAMIC CAPACITOR
Dielectric C0G
Temperature Characteristics Code C0G
Multilayer Yes
Dimensions
Height 300μm
Length 0.6mm
Width 0.3mm
Thickness (Max) 0.013 0.33mm
Thickness 330.2μm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
