ECC-A3D270JGE
RoHS
/
Package Radial, Disc
Category Capacitors / Ceramic Capacitors
Description
Radial Disc CERAMIC CAPACITOR KGE 2kV 27pF ±5% SL/GP
PDF
/
Inventory: 5628
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Disc
Terminal Shape WIRE
Dielectric Material CERAMIC
Technical
Operating Temperature -25°C~105°C
Packaging Bulk
Published 2011
Series KGE
Size / Dimension 0.276Dia 7.00mm
Tolerance ±5%
JESD-609 Code e3
Feature High Voltage
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient SL/GP
Terminal Finish Tin (Sn)
Applications General Purpose
HTS Code 8532.23.00.60
Capacitance 27pF
Voltage - Rated DC 2kV
Terminal Pitch 7.5mm
Reach Compliance Code unknown
Lead Pitch 7.493mm
Capacitor Type CERAMIC CAPACITOR
Lead Length 20mm
Lead Spacing 0.295 7.50mm
Temperature Characteristics Code SL
Multilayer No
Rated (DC) Voltage (URdc) 2000V
Size Code 2822
Lead Style Formed Leads
Lead/Base Style Formed Leads
Dimensions
Height 7mm
Height Seated (Max) 0.433 11.00mm
Width 5.5mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free

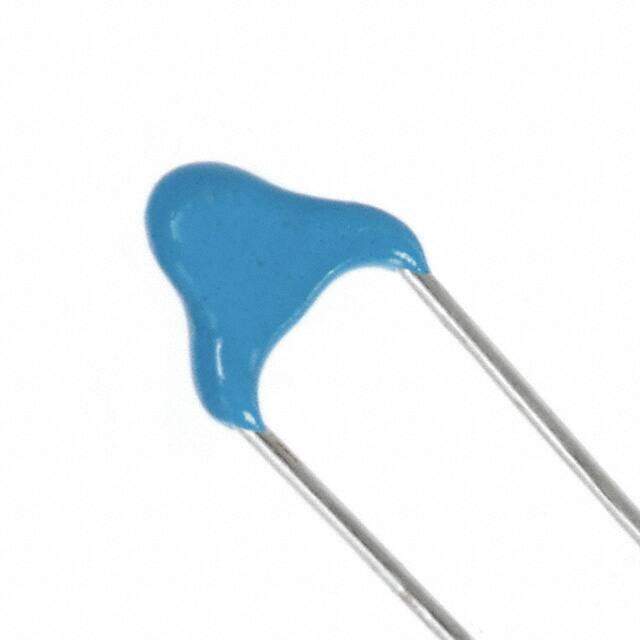

Alternative Model
